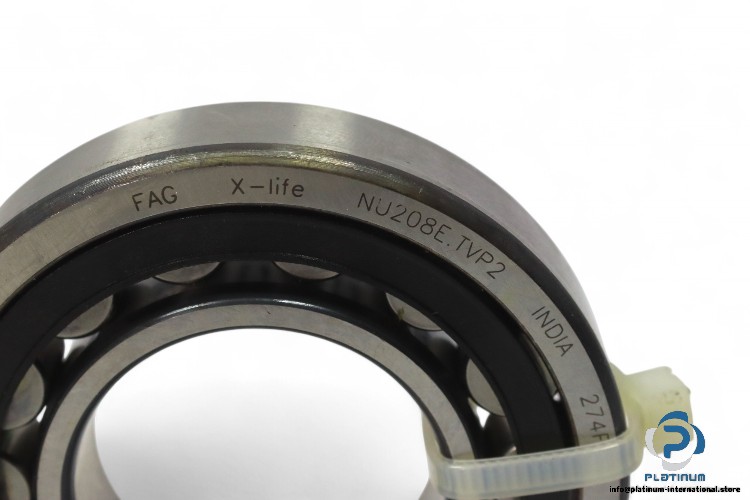

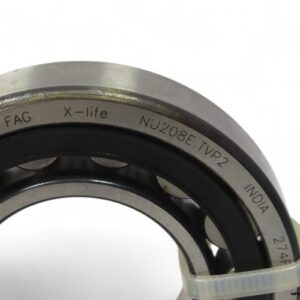

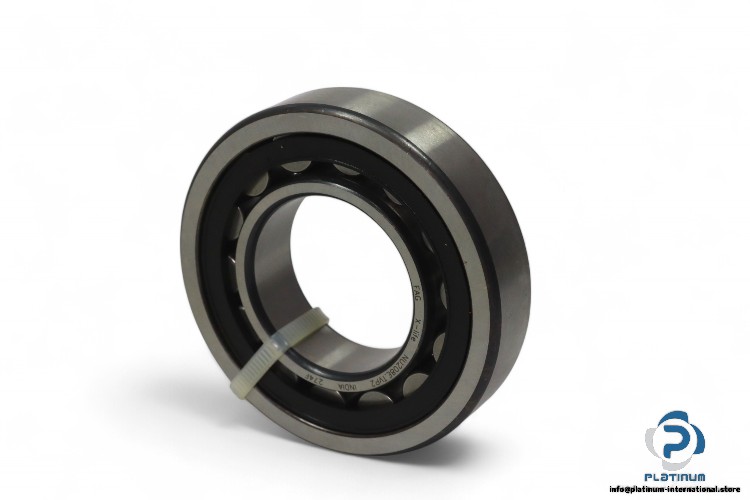

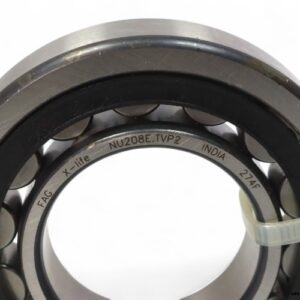

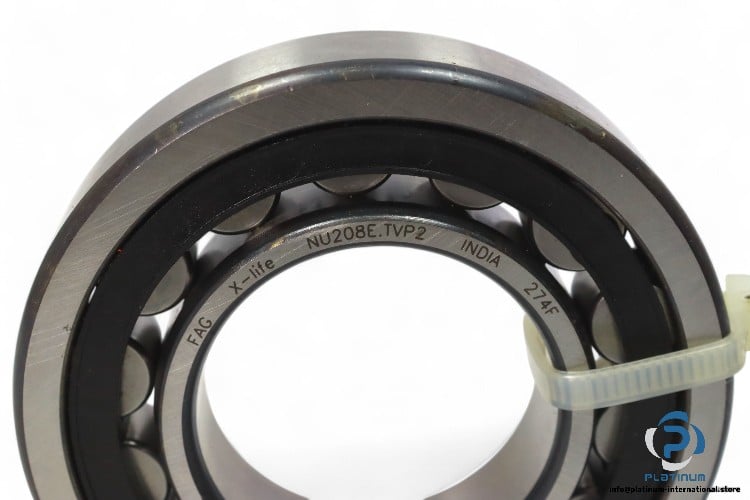

FAG NU 208 E.TVP 2 Cylindrical Roller Bearing
The FAG NU 208 E.TVP 2 Cylindrical Roller Bearing offers high performance in radial load applications, featuring an increased capacity design and a solid window cage made from PA66. It provides excellent dynamic and static load ratings for durable operation in demanding environments.
Manufacturer: FAG
Type: CYLINDRICAL ROLLER BEARING
Model: NU 208 E.TVP 2
Technical Information:
- Bore Diameter (d): 40 mm
- Outer Diameter (D): 80 mm
- Width (B): 18 mm
- Dynamic Load Rating (Cr): 63000 N
- Static Load Rating (C0r): 53000 N
- Fatigue Load Rating, Radial: 6800 N
- Reference Speed: 7500 rpm
- Limiting Speed: 12500 rpm
- Cage: TVP2, Solid Window Cage made from PA66
- Design: E, Increased Capacity Design
