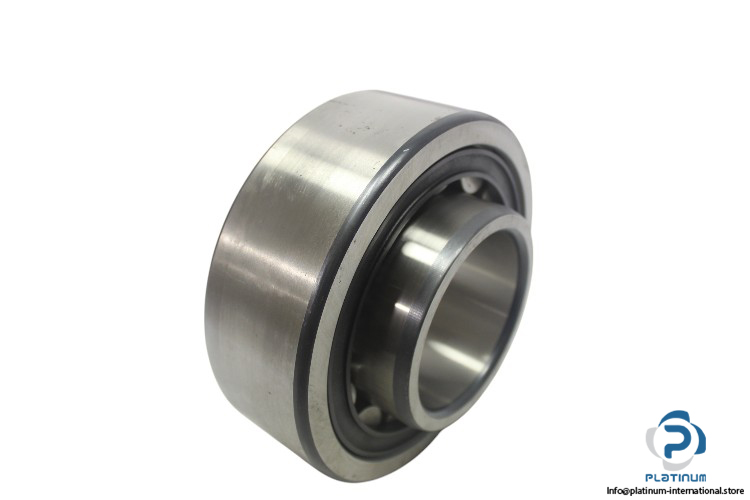

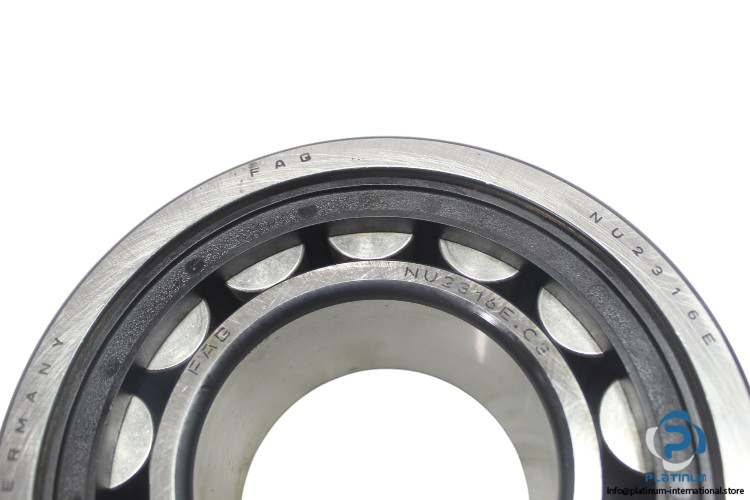

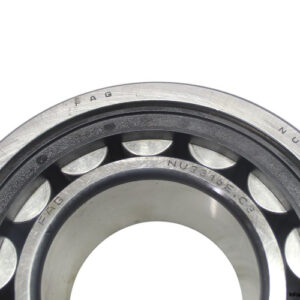

FAG NU 2316E.TVP2.C3 Cylindrical Roller Bearing

The FAG Cylindrical Roller Bearing NU 2316E.TVP2.C3 is built for handling high radial loads and providing robust performance in demanding applications. Featuring excellent dynamic and static load capacities, it offers great durability and long service life.

Manufacturer: FAG

Type: Cylindrical Roller Bearing

Model: NU 2316E.TVP2.C3

Technical Information:

• Bore Diameter: 80 mm
• Outer Diameter: 170 mm
• Width: 58 mm
• Dynamic Load Capacity (Cdyn): 420,000 N
• Static Load Capacity (C0): 425,000 N
• Fatigue Load Limit: 80,000 N
• Limiting Speed: 5,500 1/min
• Reference Speed: 3,450 1/min
• Cage: TVP2, Solid Window Cage made from PA66
• Clearance: C3
