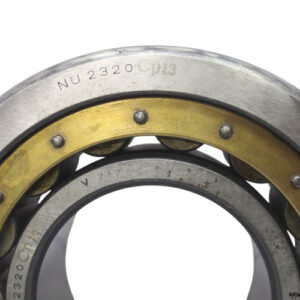

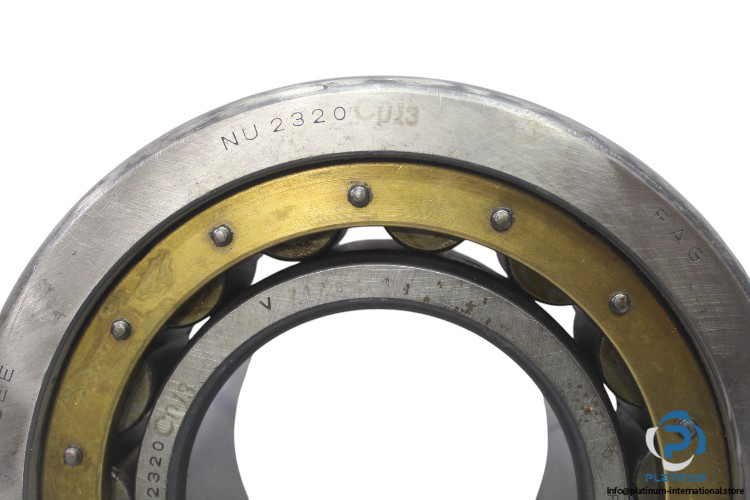

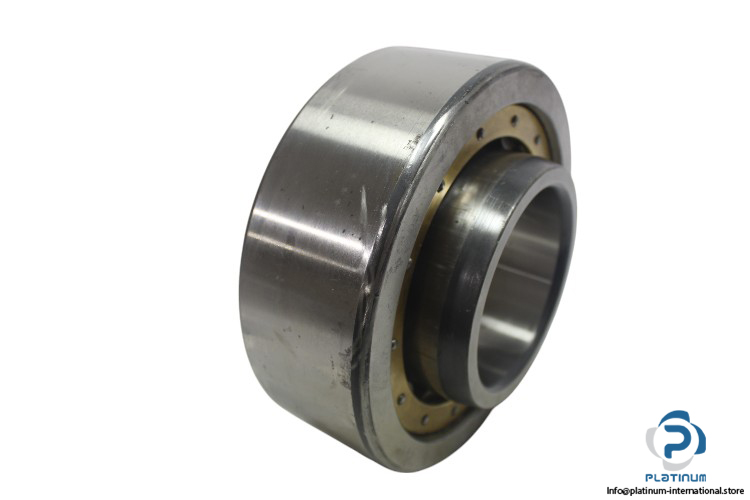

FAG NU 2320 C013 Cylindrical Roller Bearing

The FAG Cylindrical Roller Bearing NU 2320 C013 is engineered for heavy-duty applications with high dynamic and static load capacities. With a robust design and high fatigue load limit, it ensures reliable performance in demanding environments.

Manufacturer: FAG

Type: Cylindrical Roller Bearing

Model: NU 2320 C013

Technical Information:

• Bore Diameter: 100 mm
• Outer Diameter: 215 mm
• Width: 73 mm
• Dynamic Load Capacity (Cdyn): 680,000 N
• Static Load Capacity (C0): 720,000 N
• Fatigue Load Limit: 126,000 N
• Limiting Speed: 5,600 1/min
• Reference Speed: 2,500 1/min
• Cage: Brass
• Clearance: Inner Ring with Close Running Accuracy and Standard Internal Clearance, Same as C3
