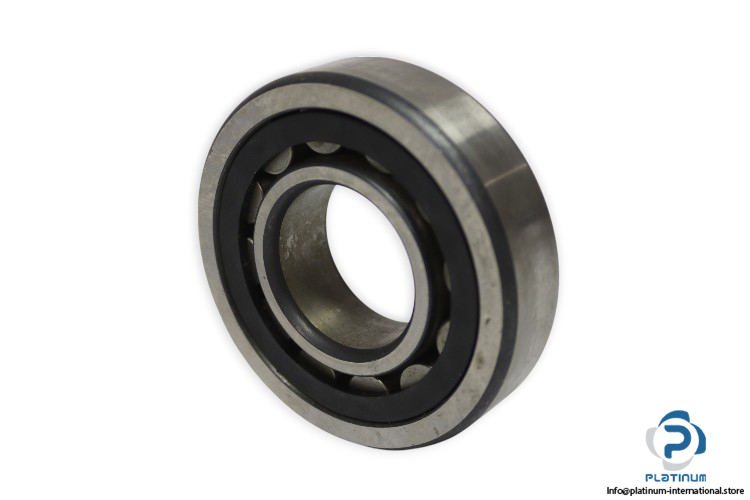

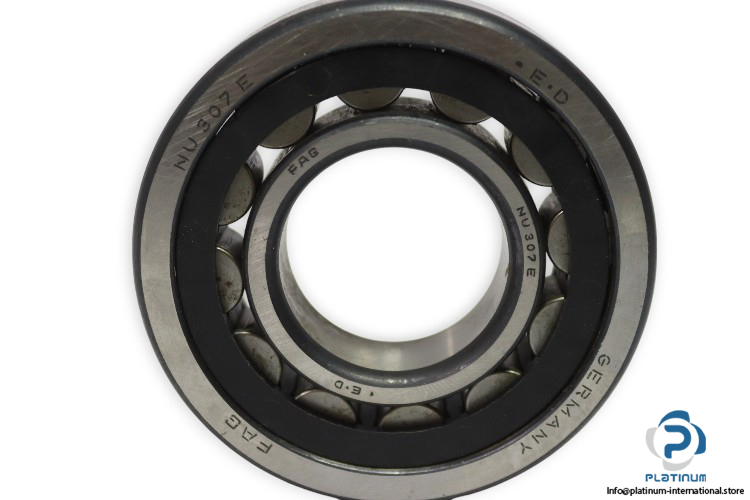

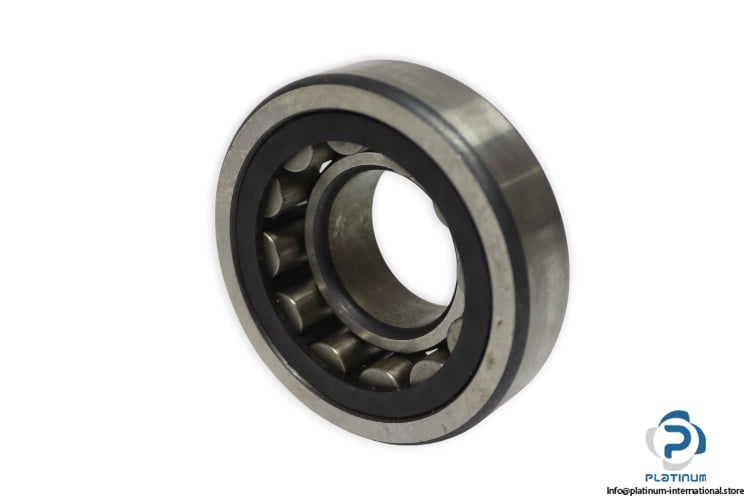

FAG NU 307 E.TVP2 CYLINDRICAL ROLLER BEARING

The FAG NU 307 E.TVP2 is a high-quality cylindrical roller bearing designed for applications requiring high load capacity and precise performance. Featuring a solid window cage made from PA66, this bearing offers excellent durability, reduced friction, and consistent operation at high speeds.

Manufacturer: FAG
Type: Cylindrical Roller Bearing
Model: NU 307 E.TVP2

Technical Information

• Bore Diameter (d): 35 mm
• Outer Diameter (D): 80 mm
• Width: 21 mm
• Basic Load Ratings, Radial: Dynamic Cr: 76,000 N, Static C0r: 63,000 N
• Fatigue Load Rating, Radial: 8,300 N
• Limiting Speed: 12,600 rpm
• Reference Speed: 7,900 rpm
• Cage Material: TVP2, Solid Window Cage made from PA66
