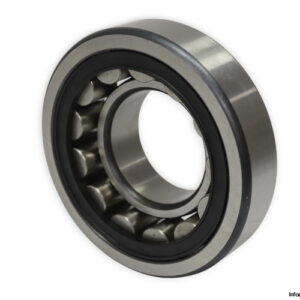

SCHAEFFLER FAG NU 312 E TVP2 CYLINDRICAL ROLLER BEARING
The SCHAEFFLER FAG NU 312 E TVP2 is a high-quality cylindrical roller bearing designed for demanding industrial applications. It features a solid window cage made from PA66, excellent load ratings, and high-speed capability, making it ideal for precision machinery and heavy-duty operations.
Manufacturer: Schaeffler FAG
Type: Cylindrical Roller Bearing
Model: NU 312 E TVP2
Replaces: NU312-E-XL-TVP2
Technical Information
- Bore Diameter (d): 60 mm
- Outer Diameter (D): 130 mm
- Width (B): 31 mm
- Dynamic Load Rating (Cr): 177000 N
- Static Load Rating (C0r): 157000 N
- Fatigue Load Rating: 21900 N
- Limiting Speed: 7400 rpm
- Reference Speed: 5200 rpm
- Cage: TVP2, Solid Window Cage made from PA66
- Operating Temperature: -30 / +120 °C
