Schaeffler FAG NU 319E.TVP2.C3 Cylindrical Roller Bearing

The Schaeffler FAG NU 319E.TVP2.C3 is a high-performance cylindrical roller bearing designed for demanding industrial applications. With robust load ratings, high speed capability, and optimized cage design, it provides long service life and reliable operation under radial loads.

Manufacturer: Schaeffler FAG
Type: Cylindrical Roller Bearing
Model: NU 319E.TVP2.C3

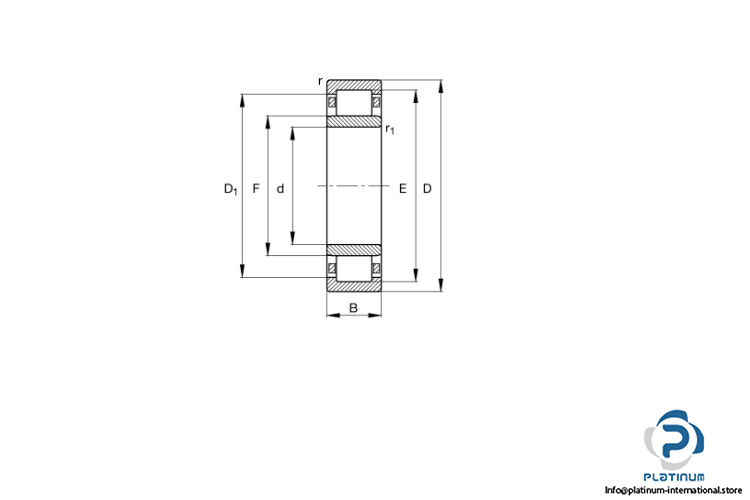

Technical information

• Bore Diameter (d): 95 mm
• Outer Diameter (D): 200 mm
• Width: 45 mm
• Basic Dynamic Load Rating, Radial: 390000 N
• Basic Static Load Rating, Radial: 380000 N
• Fatigue Load Limit, Radial: 49000 N
• Limiting Speed: 4700 rpm
• Reference Speed: 3550 rpm
• Cage: Solid Window Cage made from PA66
• Radial Internal Clearance: C3
