Manufacturer: Schaeffler FAG

Type: Cylindrical Roller Bearing

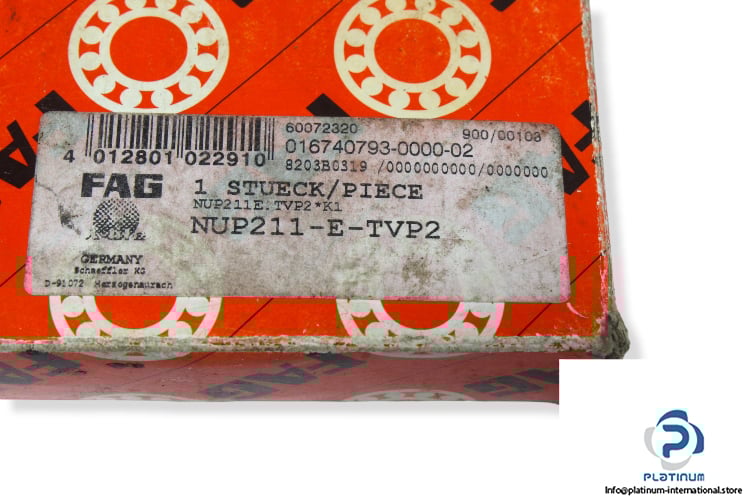

Model: NUP 211 E TVP2

Replaces: NUP211-E-XL-TVP2

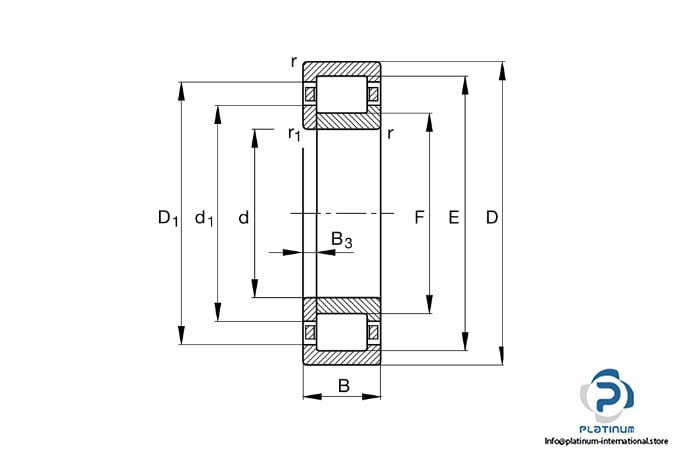

Dimensions:

Bore Diameter d: 55 mm

Outer diameter D: 100 mm

Width B: 21 mm

Basic load ratings, radial:

Dynamic C_r: 99000 N

Static C_0r: 95000 N

Fatigue load rating, radial: 16400 N

Limiting speed: 10000 rpm

Reference speed: 5800 rpm

Cage: TVP2, Solid Window Cage made from PA66

Operating temperature: -30 … +120 °C
