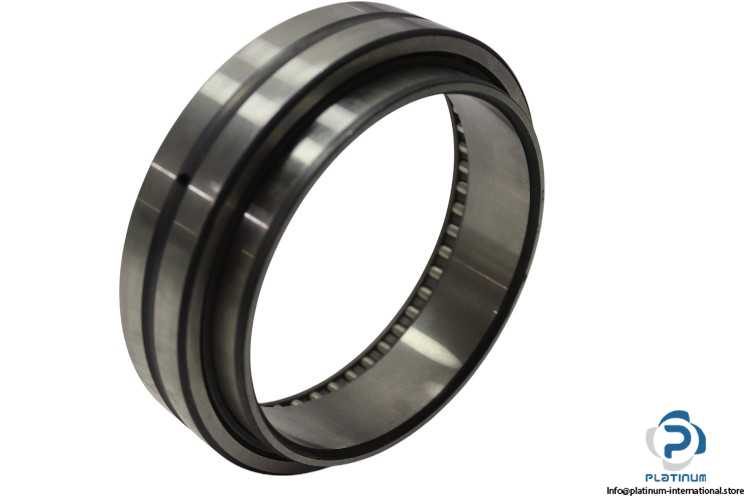

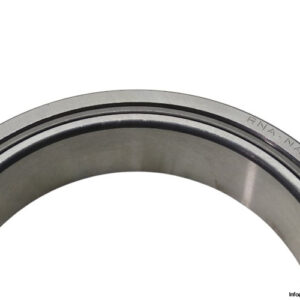

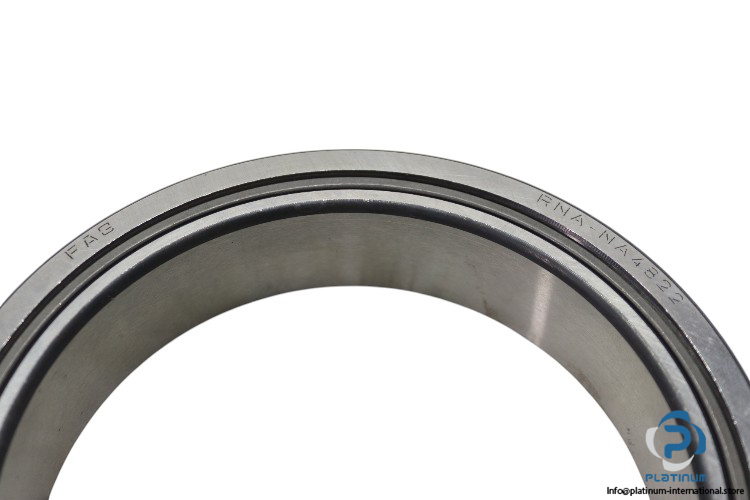

FAG RNA-NA 4822 NEEDLE ROLLER BEARING WITH INNER RING

This high-performance needle roller bearing with an inner ring from FAG is engineered for demanding applications where precision, high load capacity, and durability are essential. It is ideal for use in industrial machinery and power transmission systems requiring compact bearing solutions with excellent speed and load handling.

Manufacturer: FAG
Type: Needle Roller Bearing with Inner Ring
Model: RNA-NA 4822

Technical Information

• Shaft Diameter (d): 110 mm
• Outer Diameter (D): 140 mm
• Width (B): 30 mm
• Minimum Chamfer Dimension (rmin): 1 mm
• Dynamic Load Rating (Cr): 106,000 N
• Static Load Rating (C0r): 216,000 N
• Fatigue Load Limit (Cur): 36,500 N
• Limiting Speed: 3,900 1/min
• Reference Speed: 2,270 1/min
