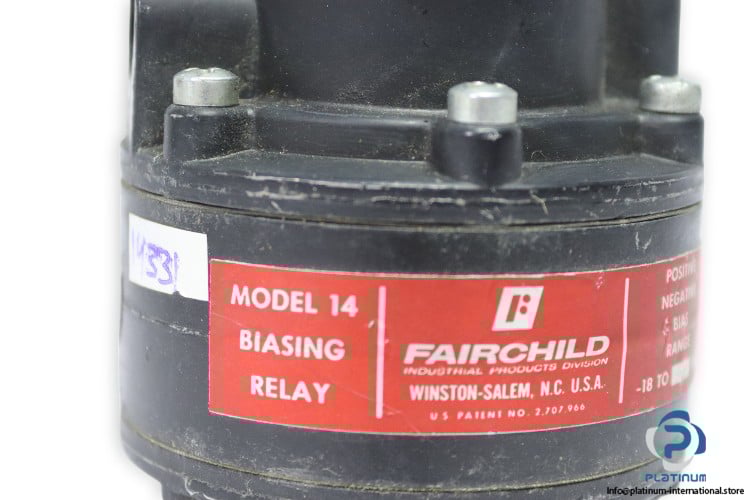

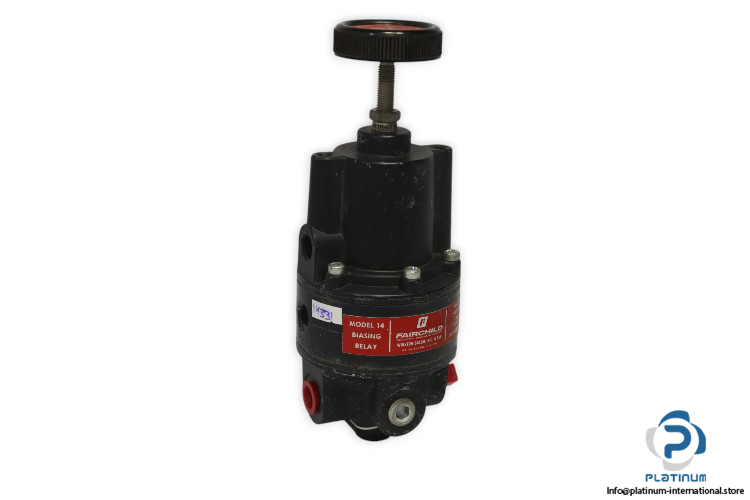

FAIRCHILD POSITIVE / NEGATIVE BIAS PNEUMATIC RELAY
This precision pneumatic relay from Fairchild (Part No. 14) is designed to offer both positive and negative biasing within a single device, ideal for dynamic control applications across various industries.
Manufacturer: Fairchild
Type: Positive, Negative Bias Pneumatic Relay
Part No.: 14
Application
- Accurate position control for pneumatic valves and actuators
- Pressure biasing and regulation in HVAC, industrial automation, and process control
- Where both positive and negative biasing is needed in a single relay
Technical Information

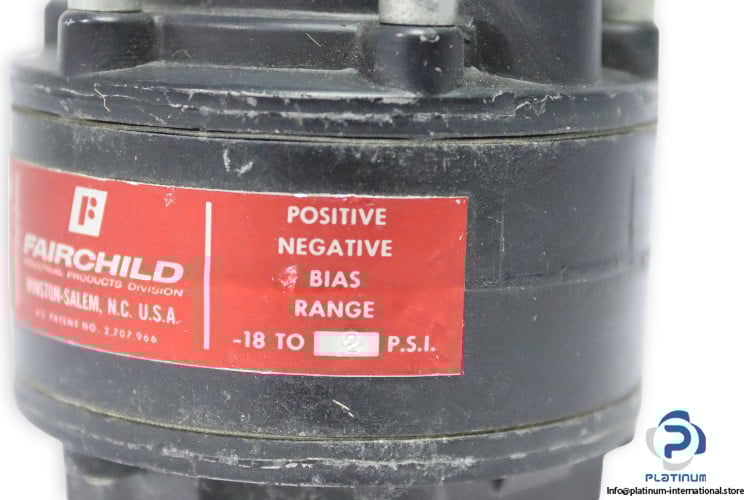

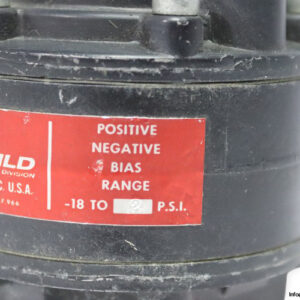

- Set‘Point Range: -18 to +2 psi
- Supply Pressure (Max): 250 psig (17 bar)
- Flow Capacity: Approximately 40 SCFM (68 m³/hr)
- Pneumatic Connection: G 1/8
- Ambient Temperature: -40 to +93 °C
- Body/Housing Materials: Aluminum, with trim options in stainless steel, brass, zinc-plated steel; diaphragms in nitrile or fluorocarbon
