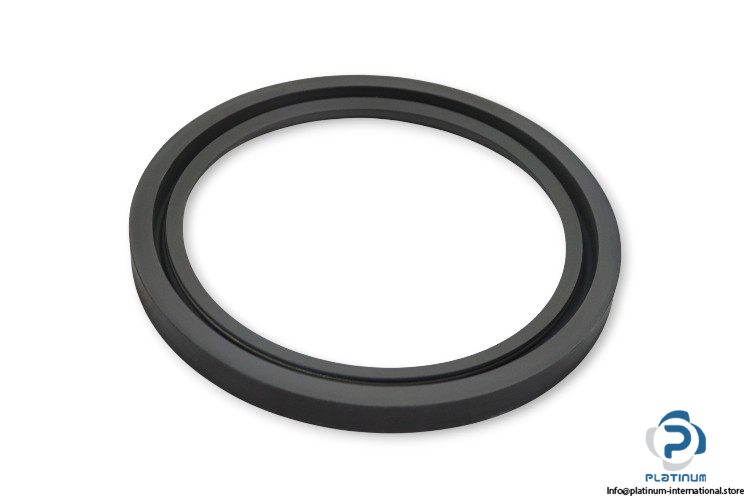

Friedrich / FDI-Dichtungen GE 110 UK-2RS Spherical Plain Bearing Seal
The GE 110 UK-2RS from Friedrich / FDI-Dichtungen is a high-quality spherical plain bearing seal engineered for demanding industrial environments. Designed with durable FDI®1002 material and dual-side sealing (2RS), it ensures excellent protection against dust, contaminants, and mechanical wear. Ideal for heavy-duty applications requiring long service life, stable movement, and maximum sealing integrity.
Manufacturer: Friedrich / FDI-Dichtungen
Type: Spherical plain bearing seal
Model: GE 110 UK-2RS
Part No.: 0120004T

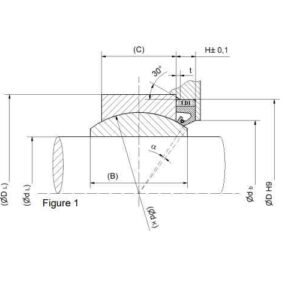

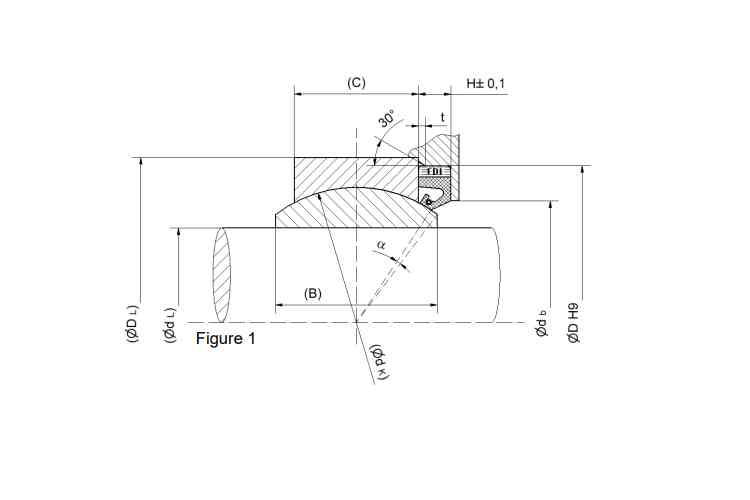

Technical Information
- DL: 160 mm
- Dl: 110 mm
- dk: 140 mm
- db max.: 135 mm
- D H9: 155 mm
- B: 70 mm
- C: 55 mm
- H±0,1: 12 mm
- t: 1,6 mm
- α. Max: 3°
- Material: FDI®1002
- Temperature Range: -40 to +120°C
- Chemical Resistance: NBR
- Sealing: 2RS, sealing on both sides
Why This Product is Recommended
This bearing seal is highly recommended for customers looking for a long-lasting solution that withstands heavy loads, harsh temperatures, and aggressive industrial conditions. Its dual-side sealing (2RS) significantly increases equipment lifespan by preventing lubricant loss and blocking external contamination. Ideal for machinery, rotating joints, hydraulic equipment, construction systems, and high-precision mechanisms where reliability and safety are critical.
