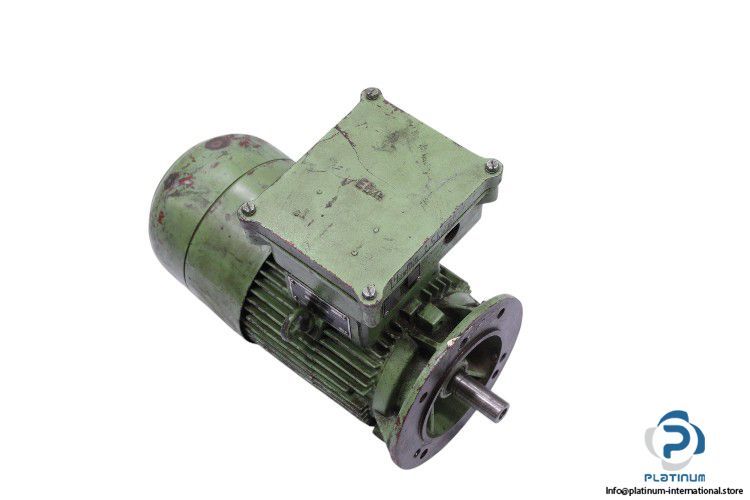

Felten Guilleaume DBDB 90L2-4 Brake Motor

The Felten Guilleaume DBDB 90L2-4 Brake Motor is a high-performance explosion-proof motor designed for industrial applications requiring precise braking and reliable operation. Built to EN 50018 E EX D 8 II BT4 explosion-proof standards, this motor offers robust protection, efficiency, and durability under demanding conditions. It features an integrated Felten Guilleaume D3D DBDB 90L2-4 Brake for enhanced stopping power and control.

• Manufacturer: Felten Guilleaume
• Type: Brake Motor
• Model: DBDB 90L2-4
• Part No: 814921001

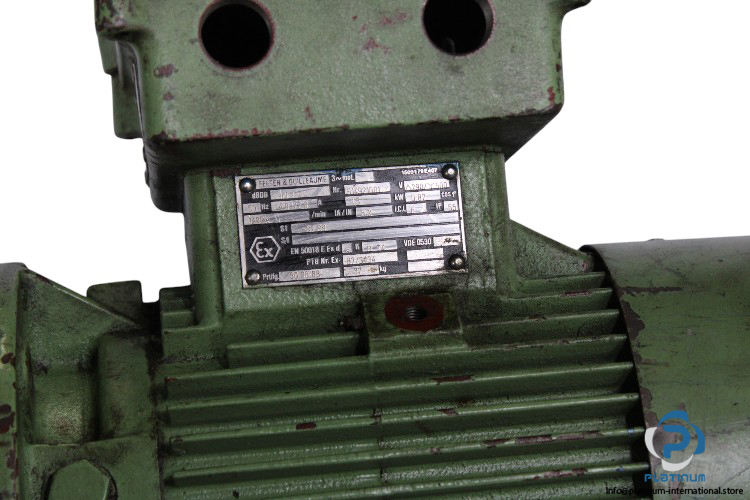

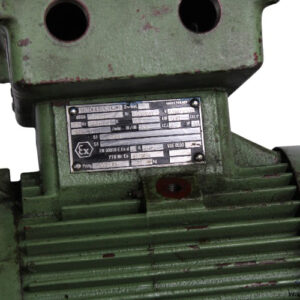

Technical Specifications

• Rated Voltage: 290/500 V
• Rated Speed: 1400 RPM
• Rated Frequency: 50 Hz
• Rated Power: 1.5 kW
• Rated Current: 4.83/2.8 A
• Power Factor: 0.87
• Protection Class: IP55
• Insulation Class: F
• Explosion Proof Standard: EN 50018 E EX D 8 II BT4
• Standard: VDE 0530

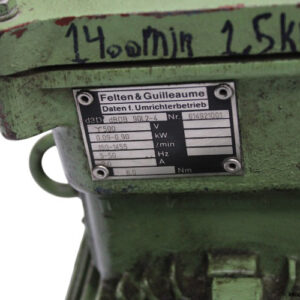

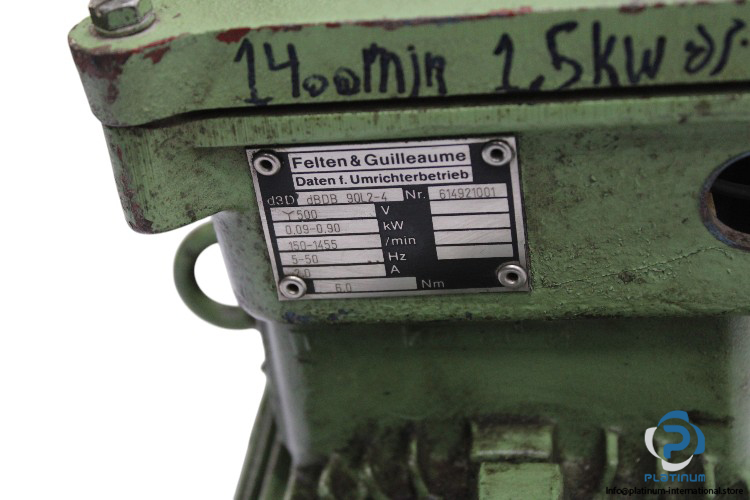

Attached Brake Specifications

• Manufacturer: Felten Guilleaume
• Type: Brake
• Model: D3D DBDB 90L2-4
• Part No: 614921001
• Rated Voltage: 500 V
• Rated Speed: 150 “ 1455 RPM
• Rated Frequency: 5 “ 50 Hz
• Rated Power: 0.09 “ 0.9 kW
• Rated Current: 2.0 A
• Rated Torque: 6 Nm
