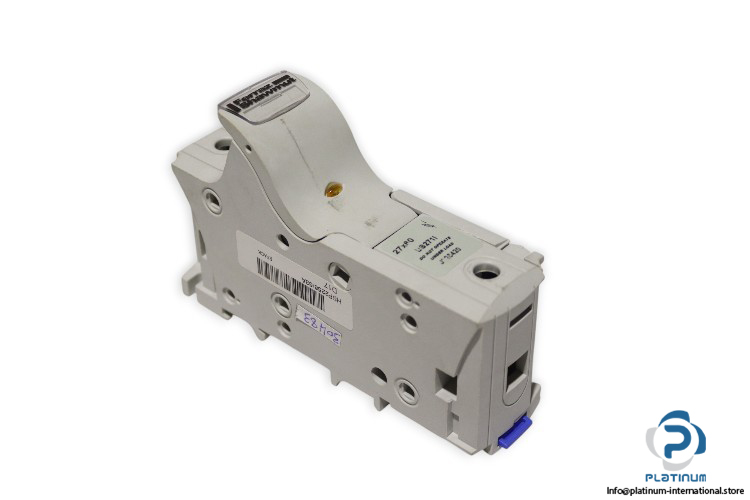

Ferraz Shawmut EPACK J226420 Modular Fuse Base (Mersen Modulostar Series)

The Ferraz Shawmut EPACK J226420, part of the Mersen Modulostar series, is a high-quality modular fuse base designed for industrial fuse protection. Engineered for durability and safety, it provides reliable performance with high voltage and current ratings, IP20 protection, and compliance with IEC 60947-3 standards.

Manufacturer: Ferraz Shawmut EPACK
Brand: Mersen
Type: Modular Fuse Base

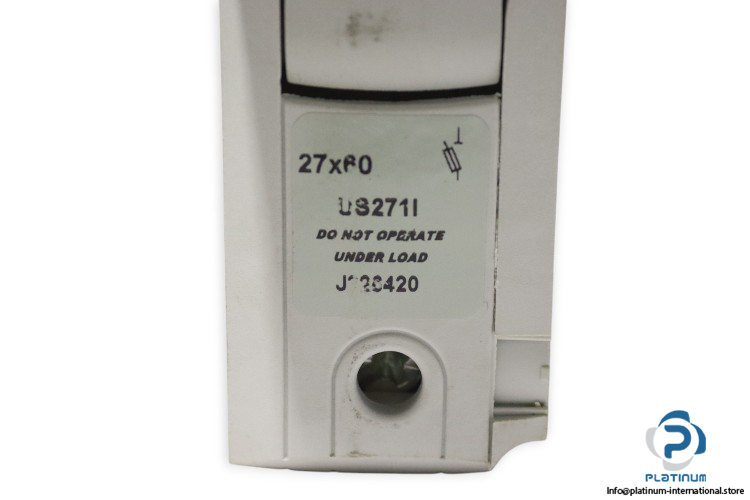

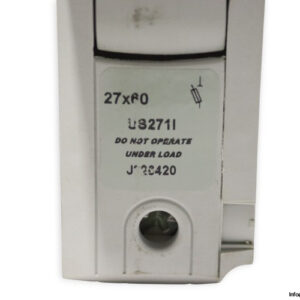

Model: J226420
Cat. No.: US271I
Code: D17
Part No.: CS10012

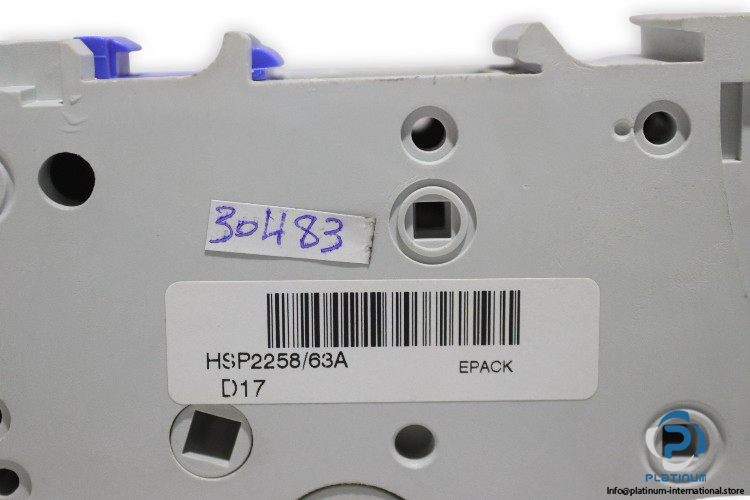

Serial No.: HSP2258/63A
Series: Modulostar
For: 27 x 60 Fuses

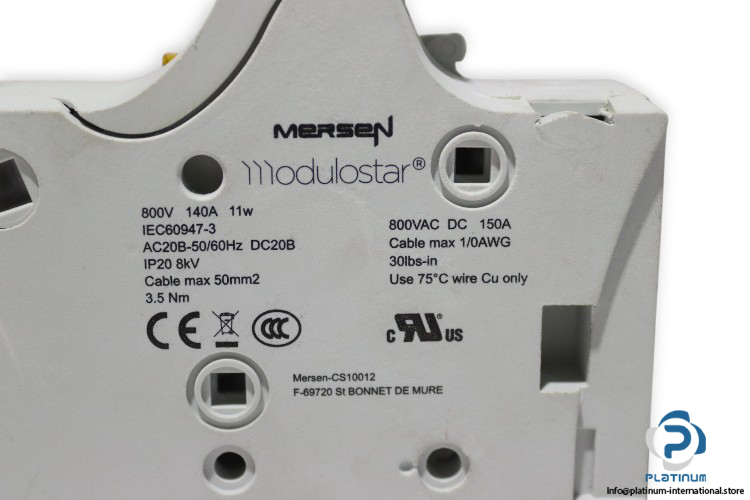

Technical information

• Design Details: Single pole
• Voltage: 800 V
• Current: 140 A (AC), 150 A (DC)
• Power Loss: 11 W
• Frequency: AC20B “ 50/60 Hz (DC20B)
• Rated Impulse Withstand Voltage: 8 kV
• Cable Capacity: max 50 mm² (IEC), max 1/0 AWG (UL/CSA)
• Torque: 3.5 Nm / 30 lb.in
• Wire Requirement: 75 °C Cu (copper) only
• Protection: IP20
• Standards: IEC 60947-3
• Dimensions: 39.9 x 93.5 x 149.9 mm
