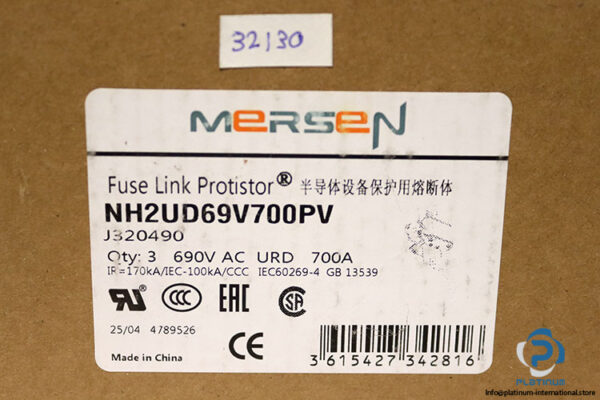

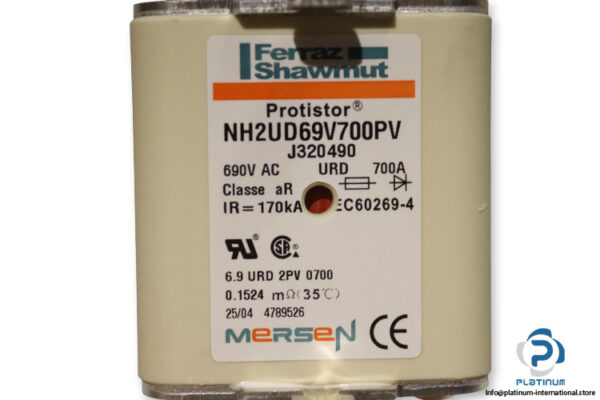

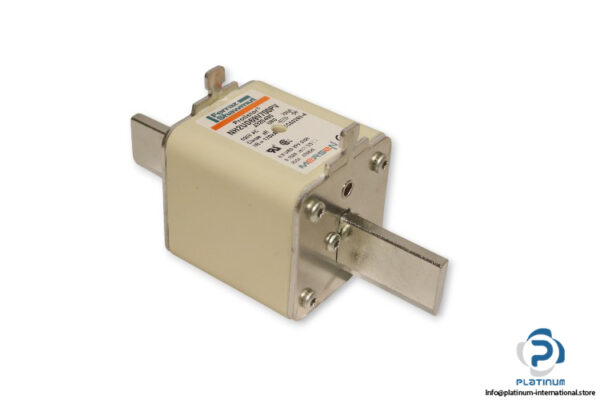

FERRAZ SHAWMUT MERSEN NH2UD69V700PV J320490 Fuse Link
The Ferraz Shawmut Mersen NH2UD69V700PV J320490 Fuse Link from the Protistor range is a high-performance semiconductor protection fuse designed to protect power converters and inverters. It offers excellent current limitation, high breaking capacity, and reliable performance in photovoltaic and industrial power applications.
Manufacturer: Ferraz Shawmut Mersen
Type: Fuse Link
Model: NH2UD69V700PV J320490
Alternative Model: 6.9 URD 2PV 0700
Part No.: 4789526
Technical Information
- Range: Protistor
- Size: NH2
- Rated Current: 700 A
- Supply Voltage: 690 V AC
- Breaking Capacity: 170/100 kA
- Operating Class: aR
- Connection: Plain Blades
- Dimensions: 74 x 150 x 52 mm
