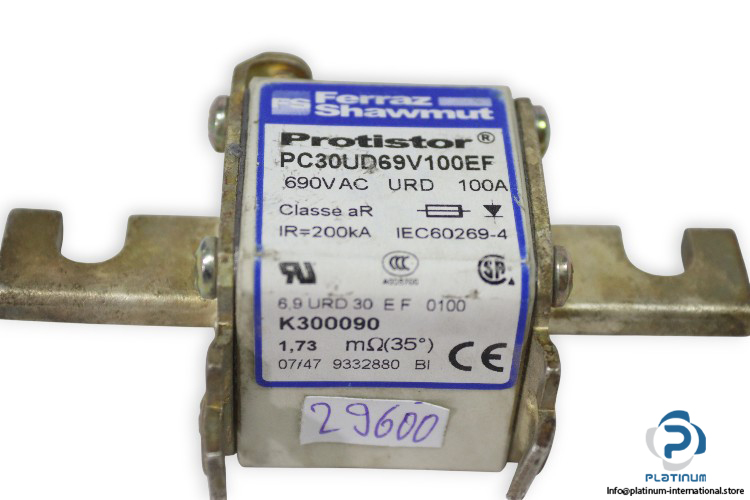

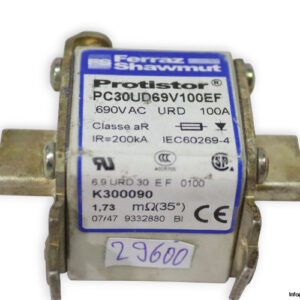

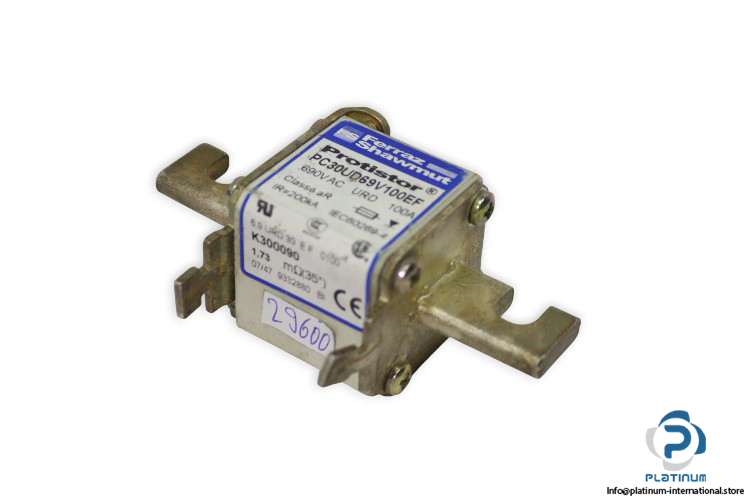

Mersen Ferraz Shawmut PC30UD69V100EF High Speed Fuse

The Mersen Ferraz Shawmut PC30UD69V100EF is a high-performance semiconductor protection fuse from the Protistor series. Designed with advanced engineering, it offers reliable protection for sensitive equipment with high breaking capacity and durable ceramic insulation.

Manufacturer: Mersen Ferraz Shawmut
Type: High Speed Fuse
Model: PC30UD69V100EF
Item No.: K300090
Ref No.: 07/47 9332880 BI

Technical Information

• Marking: 6.9 URD 30 E F 0100
• Series: Pc30
• Family: Protistor
• Size: 30
• Connection/Terminal Material: Silver-Plated Copper
• Connection/Terminal Type: Open Slot Blades
• Width: 40 mm
• Length: 100 mm
• Height: 48 mm
• Mounting: Bolted
• Rated Voltage: 690 V AC
• Rated Current: 100 A
• Class: aR (Semiconductor Protection Fuse)
• Breaking Capacity (IR): 200 kA
• Standard: IEC 60269-4
• Resistance: 1.73 mΩ (at 35°C)
• Protection Class: URD
• Body/Insulating Material: Ceramic
