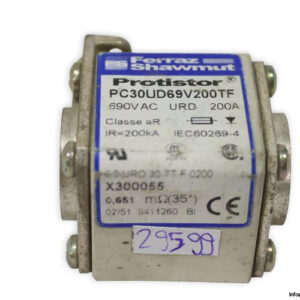

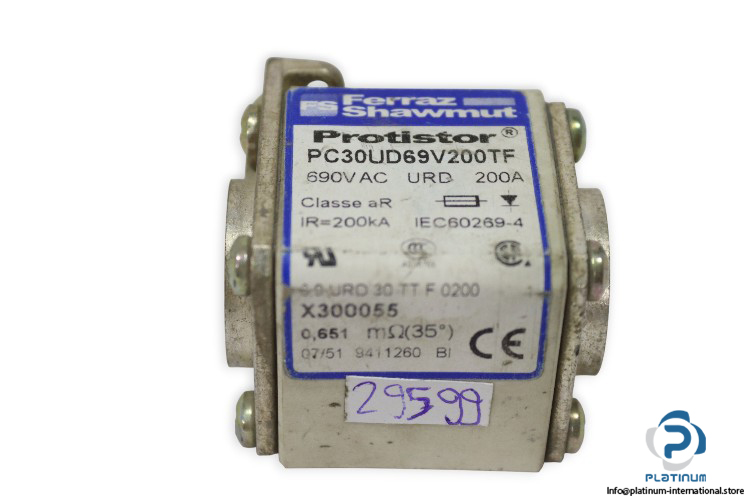

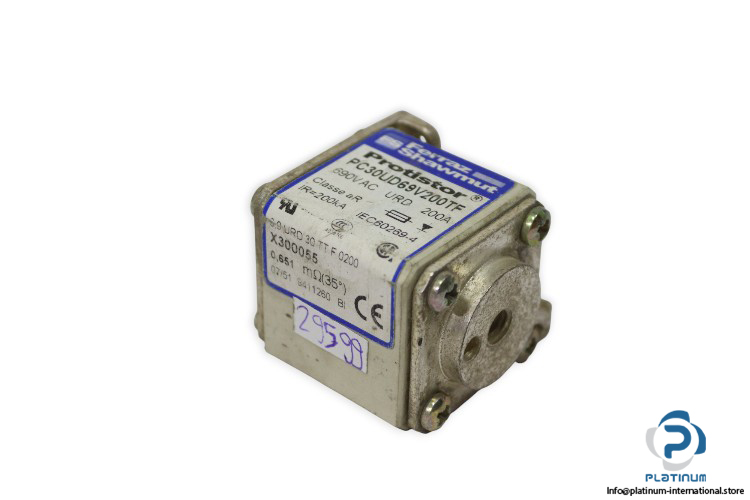

Mersen Ferraz Shawmut PC30UD69V200TF High Speed Fuse
The Mersen Ferraz Shawmut PC30UD69V200TF is a high-speed fuse from the Protistor family, designed for semiconductor protection. Built with silver-plated brass terminals and ceramic insulation, it offers excellent reliability and safety in industrial power applications.
Manufacturer: Mersen Ferraz Shawmut
Type: High Speed Fuse
Model: PC30UD69V200TF
Item No.: X300055
Ref No.: 07/51 9411260 BI
Series: PC30
Family: Protistor
Size: 30
Technical Information
- Connection/Terminal Material: Silver-Plated Brass
- Connection/Terminal Type: Flush Ends
- Width: 40 mm
- Length: 50.6 mm
- Height: 48 mm
- Mounting: Bolted
- Rated Voltage: 690 V AC
- Rated Current: 200 A
- Class: aR (Semiconductor Protection Fuse)
- Breaking Capacity (IR): 200 kA
- Standard: IEC 60269-4
- Resistance: 0.651 mΩ (at 35°C)
- Protection Class: URD
- Body/Insulating Material: Ceramic
