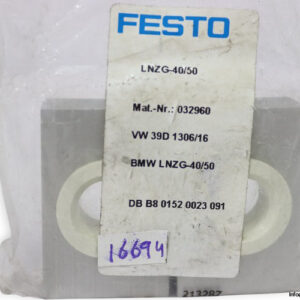

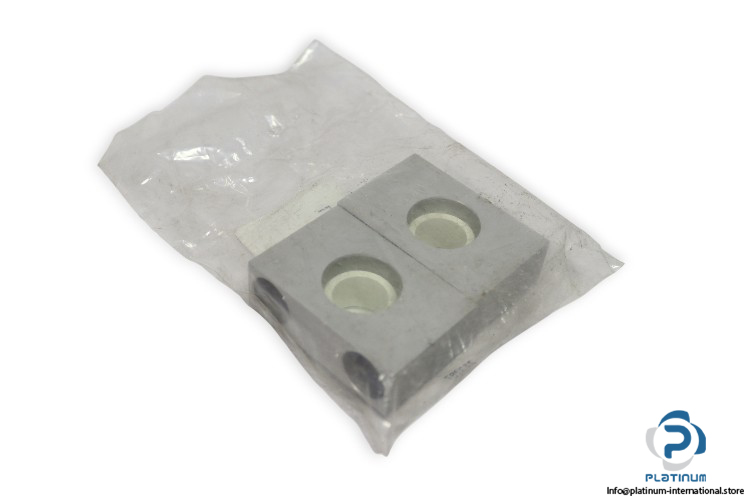

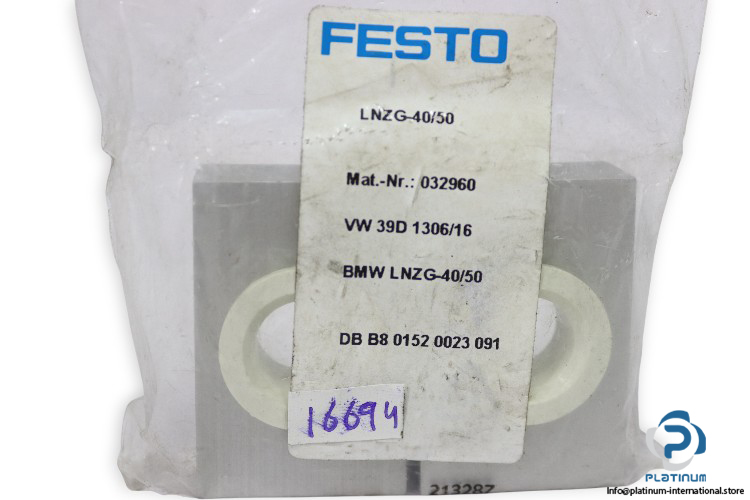

FESTO LNZG-40/50 Trunnion Support
The FESTO LNZG-40/50 Trunnion Support is a precision mounting component designed for use with ISO 15552 standard cylinders. Built from durable materials, it offers stable cylinder attachment and reliable performance in industrial automation systems.
Manufacturer: FESTO
Type: Trunnion Support
Model: LNZG-40/50
MRN: 032960
Technical Information
- Size: 40/50
- Based on Standard: ISO 15552
- Corrosion Resistance Class (CRC): 2 “ Moderate corrosion stress
- LABS (PWIS) Conformity: VDMA24364-B2-L
- Suitability for Li-ion Battery Production: Suitable with reduced Cu, Zn, Ni values (F1a)
- Ambient Temperature: minus 40 to 80 degree Celsius
- Maximum Load Capacity: 2.5 kN
- Material Mounting: Wrought aluminium alloy
- Material Bearing: Polymer
