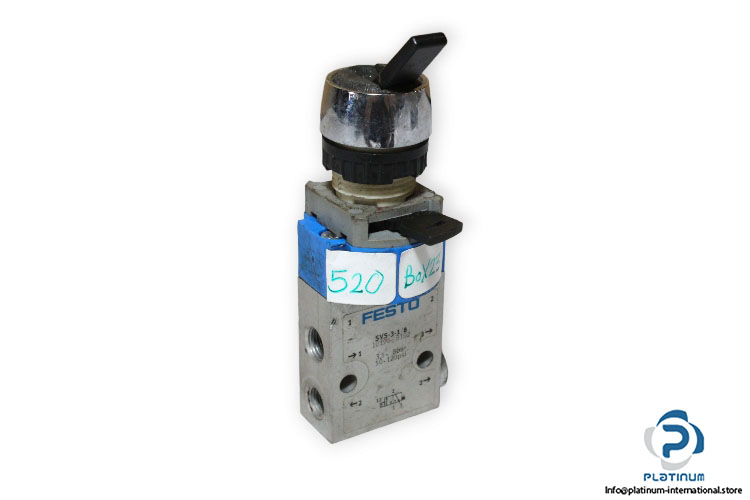

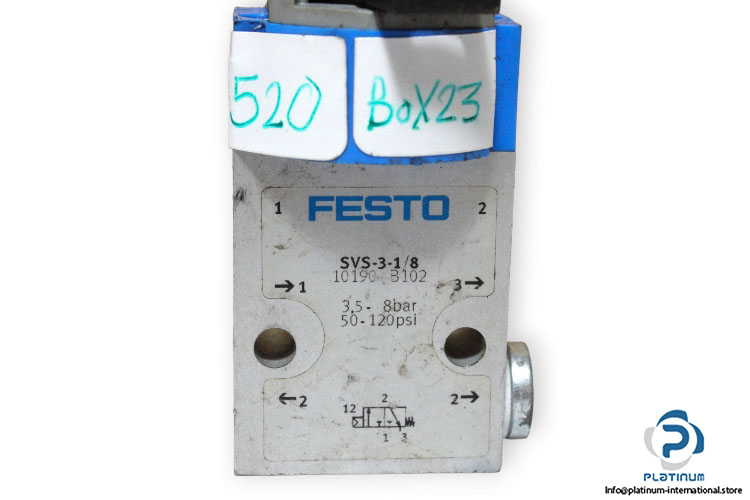

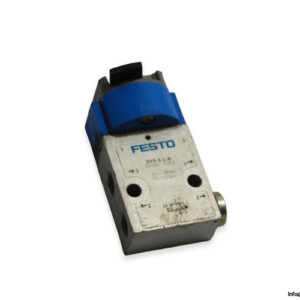

FESTO SVS-3-1/8 FRONT PANEL VALVE
The FESTO SVS-3-1/8 is a durable and compact front panel valve engineered for reliable manual control in pneumatic systems. With a 3/2-way function, aluminum body, and piston seat design, it ensures precise air flow regulation in industrial environments. Also available as SVOS-3-1/8.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SVS-3-1/8
Alternative Model: SVOS-3-1/8
Part No.: 10190 / 10191
Technical Information
- Fluid: Air
- Design: Piston seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Mechanically
- Operating Pressure: 3.5 / 10 bar
- Nominal Flow Rate: 120 l/min
- Actuating Force: 8 N
- Pneumatic Connection: G1/8
- Material: Aluminum
- Ambient Temperature: -10 / 60 °C
