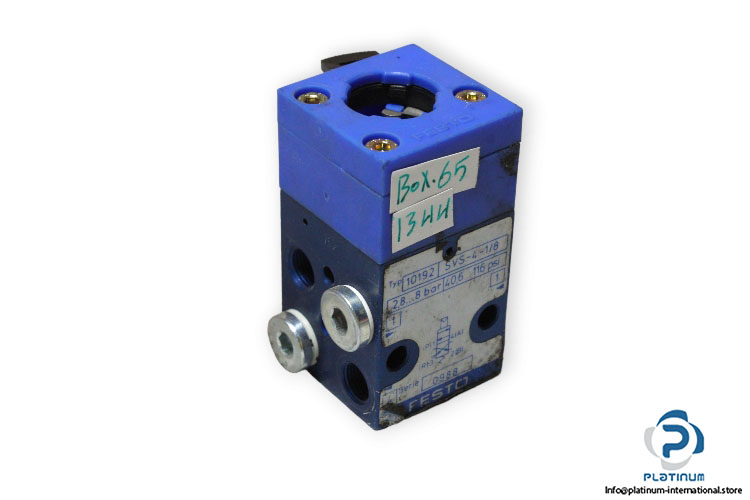

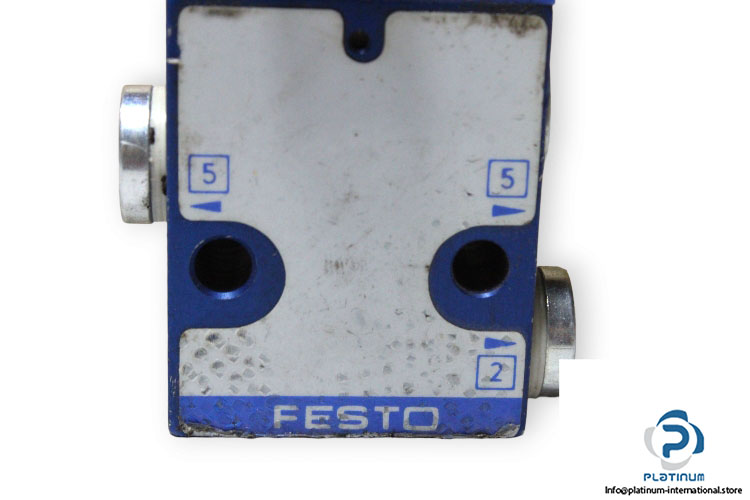

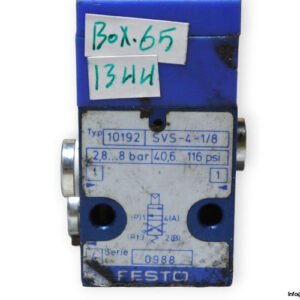

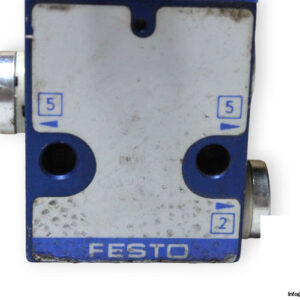

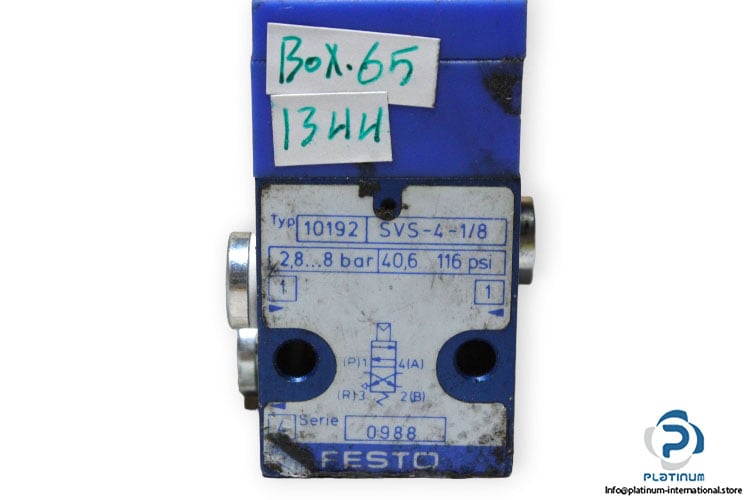

FESTO SVS-4-1/8 FRONT PANEL VALVE
The FESTO SVS418 is a high-performance front panel valve designed for reliable mechanical control of pneumatic systems. Its 4/2-way monostable function and compact piston seat design ensure durability and accurate flow switching under varying pressures.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SVS-4-1/8
Part No.: 10192
Technical Information
- Fluid: Air
- Design: Piston Seat
- Valve Function: 4/2-Way, Monostable
- Type of Actuation: Mechanically
- Operating Pressure: 3.5 / 8 bar
- Nominal Flow Rate: 120 l/min
- Actuating Force: 8 N
- Pneumatic Connection: G1/8
- Material: Aluminum
- Ambient Temperature: -10 / 60 °C
