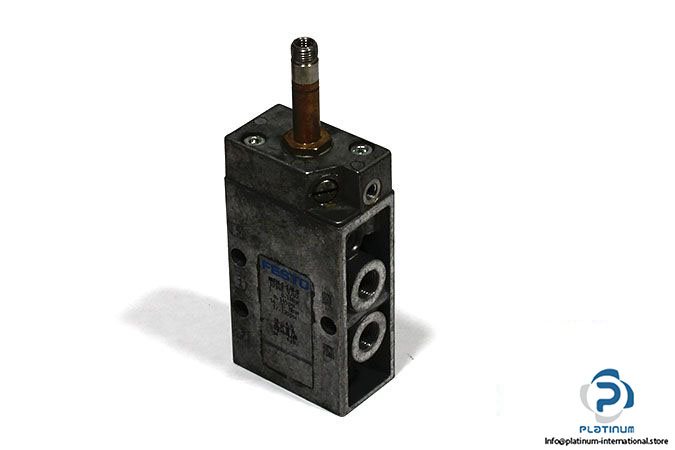

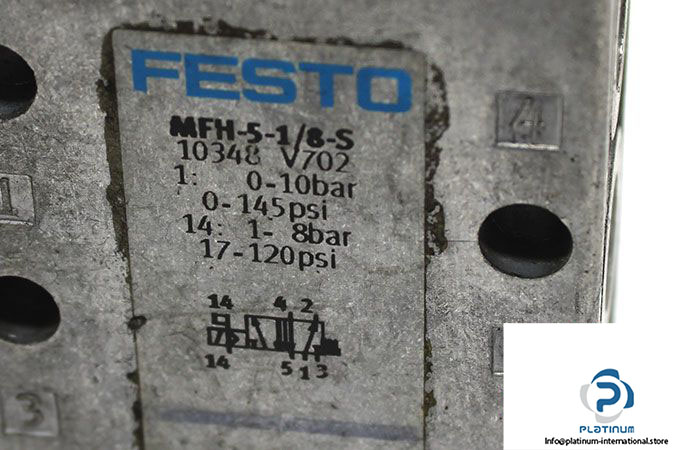

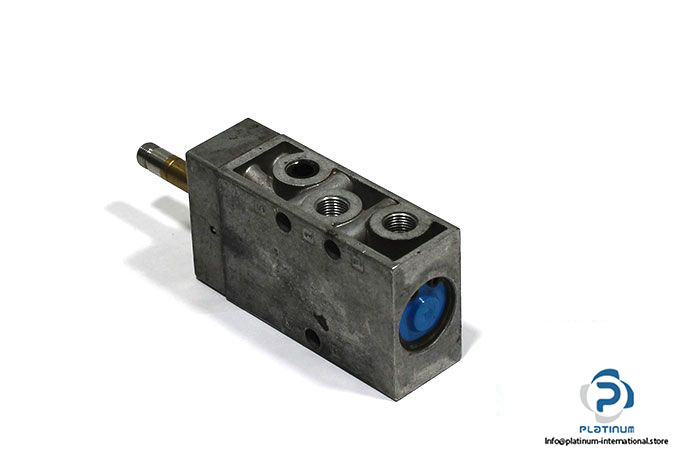

FESTO MFH-5-1/8-S SINGLE SOLENOID VALVE
The FESTO MFH-5-1/8-S is a high-performance single solenoid valve designed for reliable and precise pneumatic control. With a piston slide design and monostable 5/2-way function, it ensures efficient switching in various automation environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-5-1/8-S
Part No.: 10348
Technical Information
- Fluid: Air
- Design: Piston Slide
- Function: 5/2-Way, Monostable
- Type of Actuation: Electrically
- Operating Pressure: 0 … 10 bar
- Pilot Pressure: 1.2 … 8 bar
- Nominal Flow Rate: 500 l/min
- Pneumatic Connection: G1/8
- Material: Aluminium Die Cast
- Ambient Temperature: -5 / 40 °C
