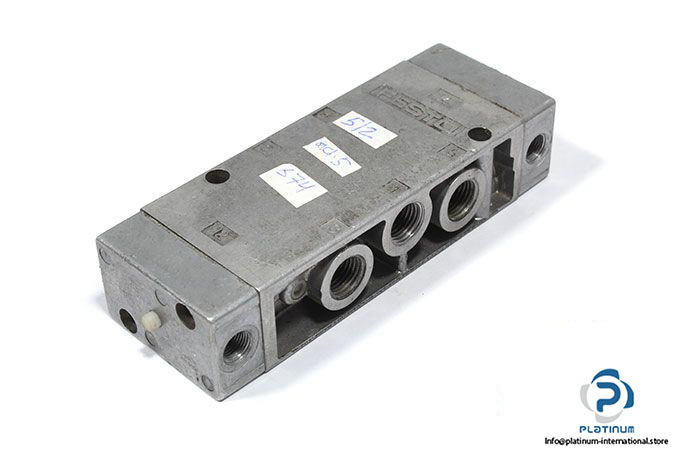

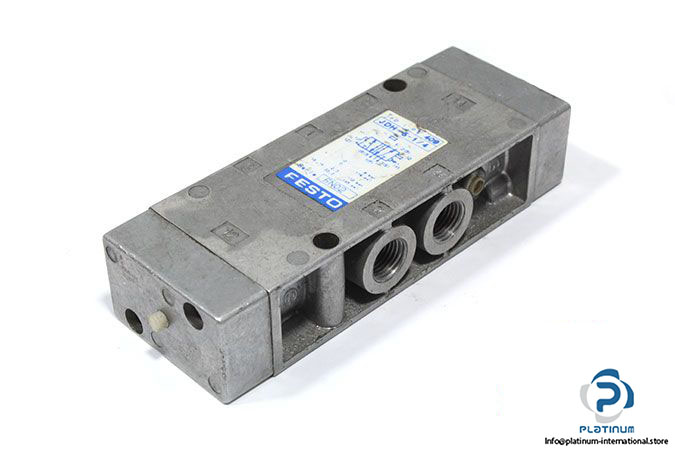

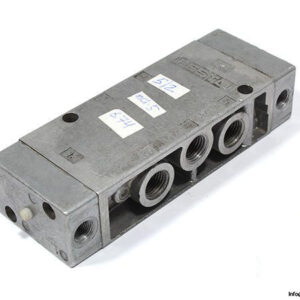

FESTO JDH-5-1/4 PNEUMATIC VALVE
The FESTO JDH-5-1/4 is a robust and efficient pneumatic valve engineered for industrial air control systems. Featuring a 5/2-way bistable function and a poppet seat design, this valve ensures reliable performance under varying pressure ranges. Designed for pneumatic actuation, it offers a high nominal flow rate and durable aluminum construction.
Manufacturer: FESTO
Type: Pneumatic Valve

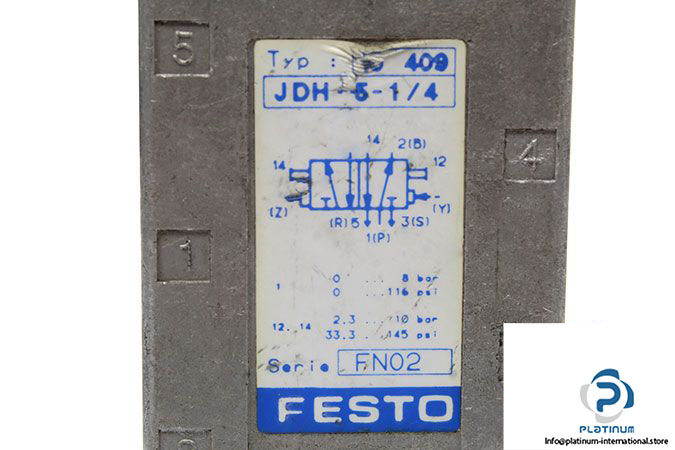

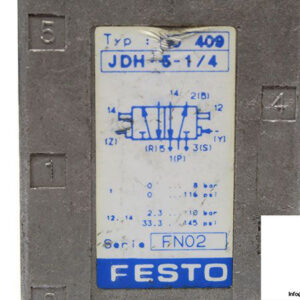

Model: JDH-5-1/4
Part No.: 10409
Technical Information
- Fluid: Air
- Design: Poppet seat
- Valve Function: 5/2-way, bistable, dominant
- Type of Actuation: Pneumatically
- Operating Pressure: 0 … 8 bar
- Pilot Pressure: 2.3 … 10 bar
- Nominal Flow Rate: 1100 l/min
- Pneumatic Connection: G1/4 / G1/8
- Material: Die-cast aluminum
- Ambient Temperature: -10 / 60 °C
