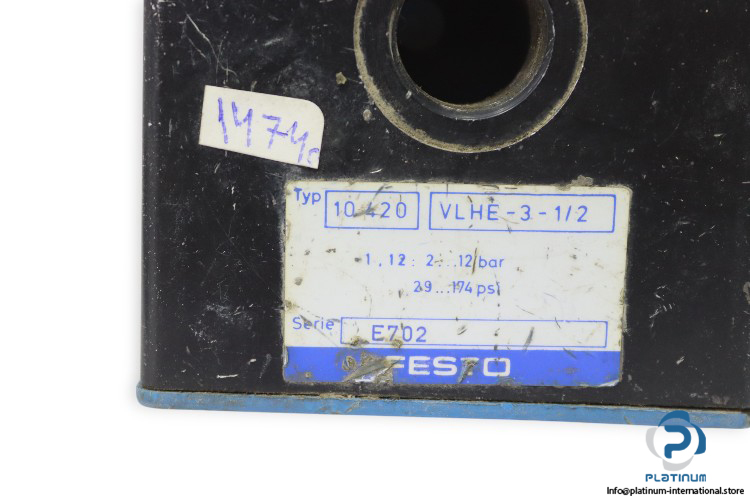

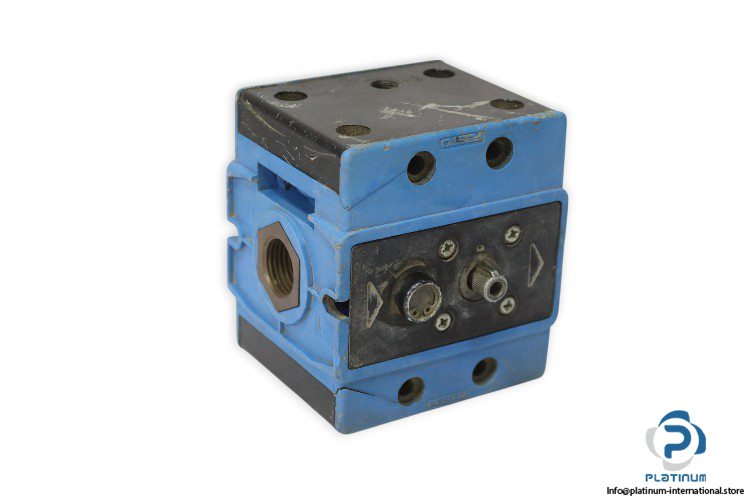

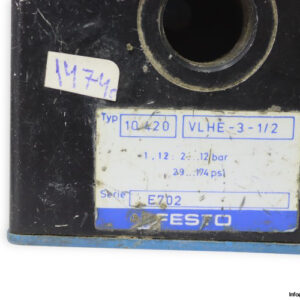

FESTO VLHE31/2 PNEUMATIC VALVE

High-performance pneumatic valve engineered for industrial air control systems. The monostable 3/2-way poppet seat design ensures rapid switching and reliable sealing, ideal for automation and machinery applications.

• Manufacturer: Festo
• Type: Pneumatic Valve
• Model: VLHE31/2
• Part No.: 10 420
• Series: E702

Technical Information

• Fluid: Air
• Design: Poppet Seat
• Function: 3/2 Closed, Monostable
• Type of Actuation: Pneumatically
• Operating Pressure: 2 to 12 bar
• Nominal Flow Rate: 2900 l/min
• Pneumatic Connection: G1/2
• Ambient/Medium Temperature: -10 to 60 °C
• Mounting Type: With Through Hole
• Nominal Size: 12 mm
