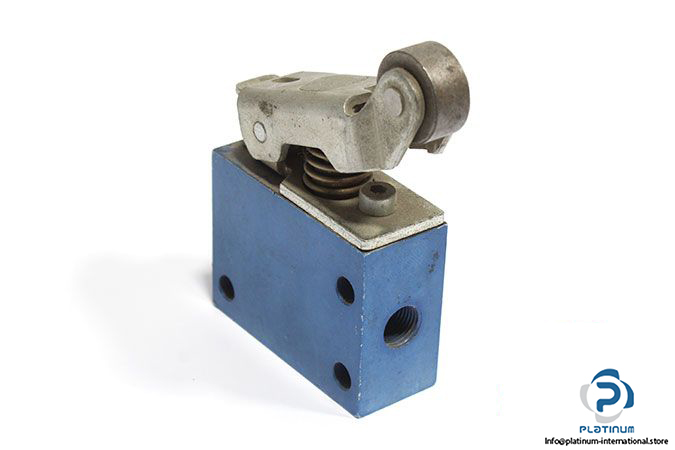

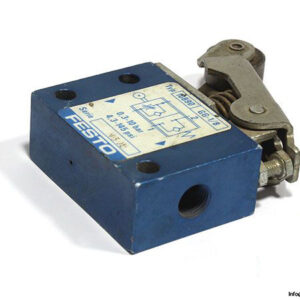

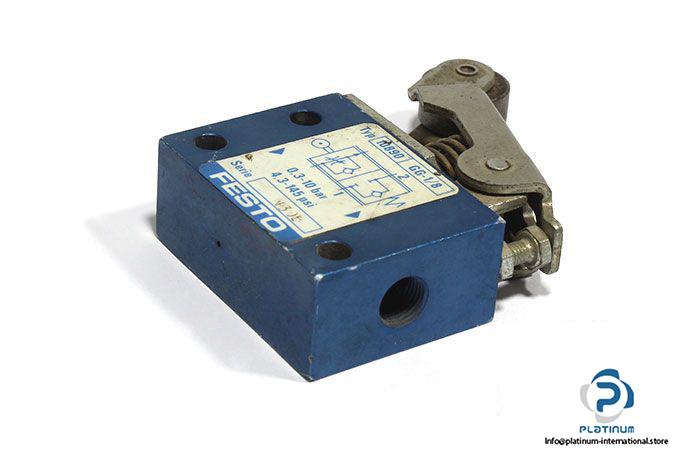

FESTO GG-1/8 ONE-WAY FLOW CONTROL VALVE
The FESTO GG18 is a compact and reliable one-way flow control valve designed for precise regulation of compressed air in industrial pneumatic systems. Built with durable materials and mechanical actuation, it offers high performance and easy integration in control setups.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GG-1/8

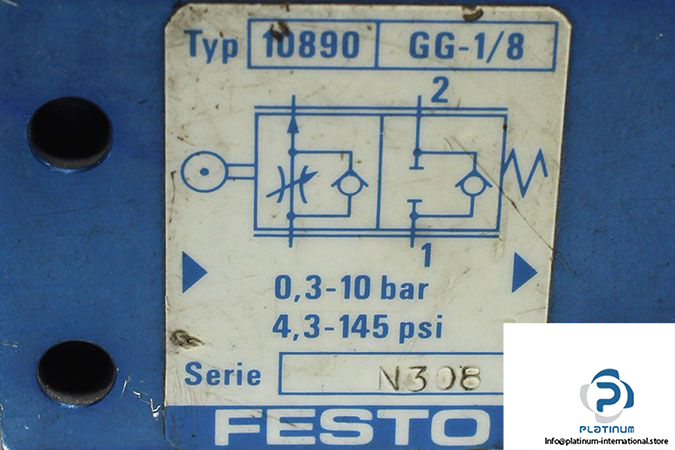

Part No.: 10890
Technical Information
- Fluid: Compressed Air
- Type of Actuation: Mechanical
- Adjusting Element: Roller Lever
- Operating Pressure: 0.3 / 10 bar
- Standard Nominal Flow Rate (Flow Control Direction): 280 l/min
- Standard Nominal Flow Rate (Blocked Direction): 240 / 350 l/min
- Port Sizes: G1/8, Threaded
- Housing Material: Wrought Aluminum Alloy
- Seals Material: NBR
- Medium/Ambient Temperature: -10 / 60 °C
