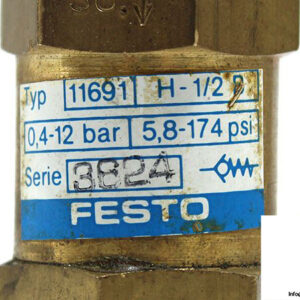

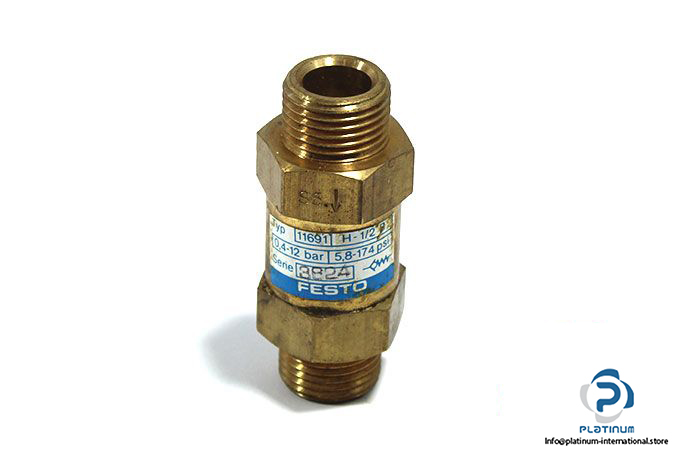

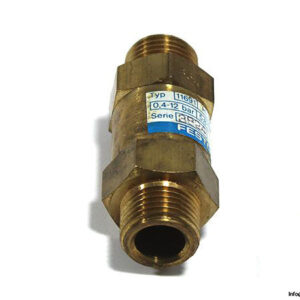

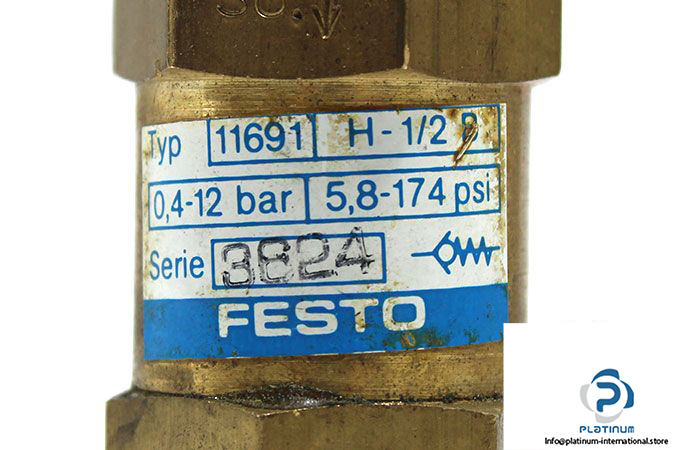

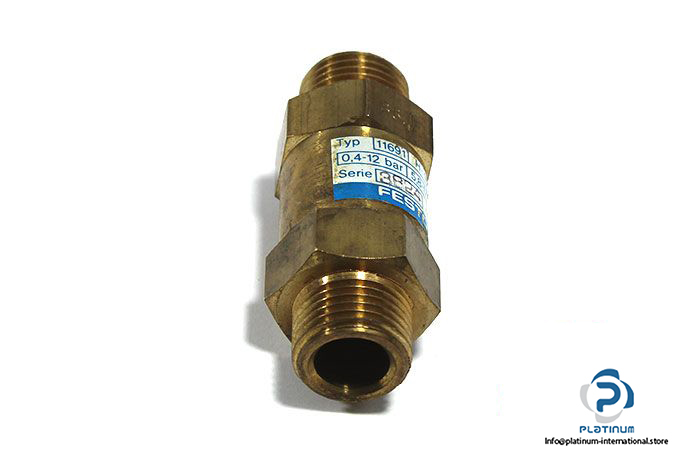

FESTO H-1/2-B CHECK VALVE
The FESTO H12B is a high-performance check valve with non-return function, engineered for reliable air flow control in pneumatic systems. Built from Brass, it offers durability and optimal flow performance.
Manufacturer: FESTO
Type: Check Valve
Model: H-1/2-B
Part No.: 11691
Technical Information
- Fluid: Air
- Function: Non-return function
- Operating Pressure: 0.4 … 12 bar
- Nominal Flow Rate: 5500 l/min
- Pneumatic Connection: G1/2
- Material: Brass
- Ambient Temperature: -10 / 60 °C
