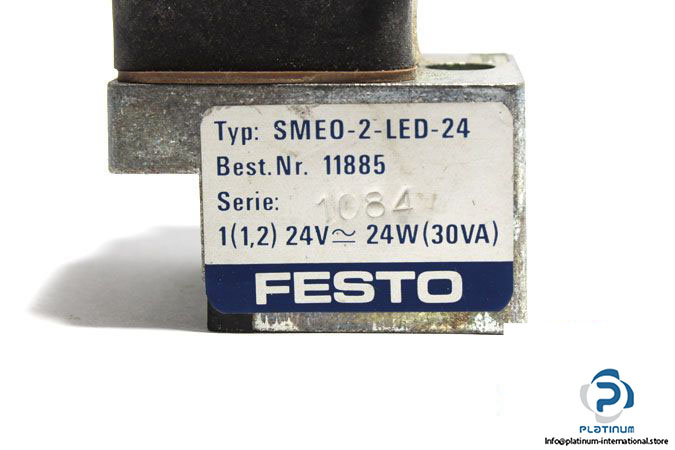

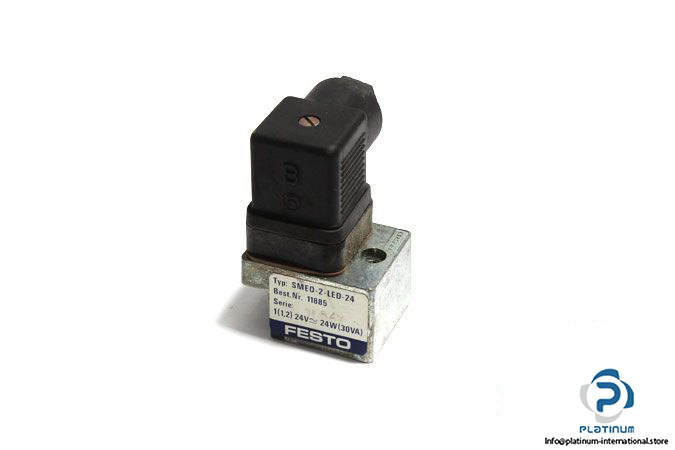

FESTO SMEO-2-LED-24 PROXIMITY SWITCH

The Festo SMEO-2-LED-24 is a high-performance proximity switch utilizing magnetic field sensing for precise position detection in automation systems. Designed with an integrated LED indicator and fast switching speed, it supports both AC and DC operations.

Manufacturer: Festo
Type: Proximity Switch
Model: SMEO-2-LED-24
Part No.: 11885
Series: 1084

Technical Information

• Medium: Magnetic Field and Electrical Current
• Design: Normally Open Reed Switch
• Max. Switching Time: 2 ms
• Supply Voltage: 24 V AC/DC
• Max. Current Rating: 1(1.2) A
• Power: 24 W (30 VA)
• Operating Temperature Range: -20 to 60°C
