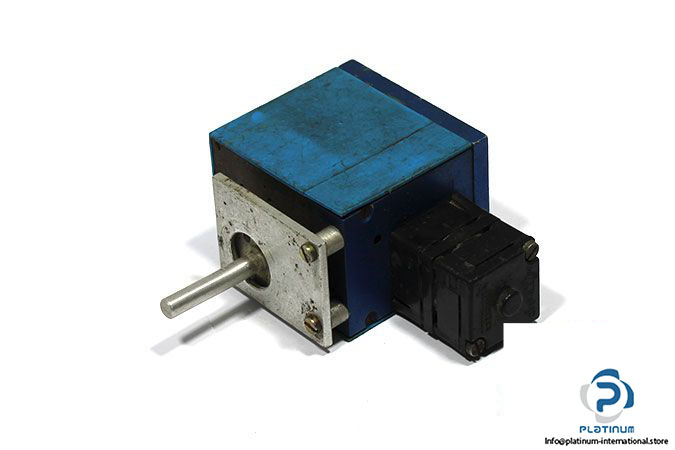

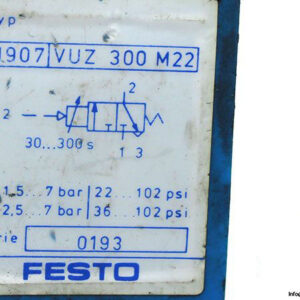

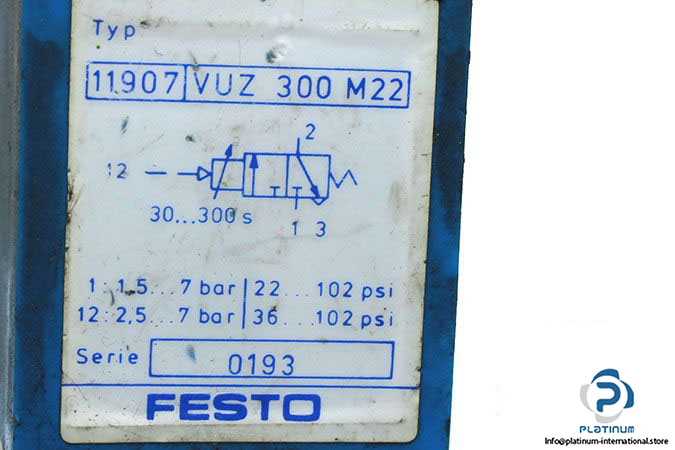

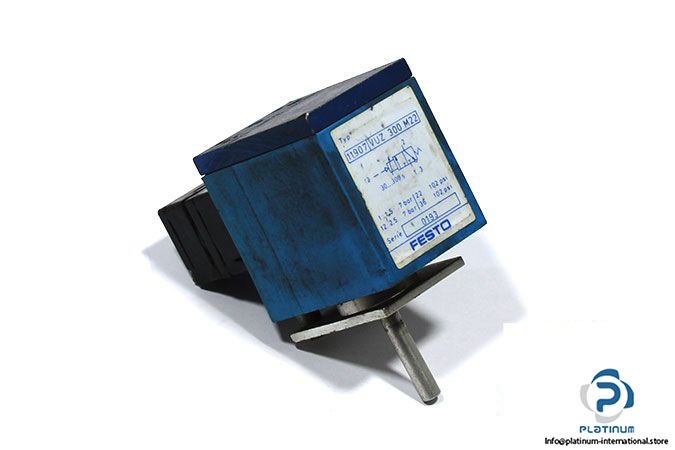

FESTO VUZ 300 M 22 PNEUMATICALLY ACTUATED VALVE

The FESTO VUZ300M22 is a high-performance pneumatically actuated valve engineered for precision and reliability in air control systems. With a poppet valve design, return spring, and adjustable delay feature, it™s ideal for applications requiring controlled air flow and dependable switching.

Manufacturer: FESTO
Type: Pneumatically Actuated Valve
Model: VUZ-300-M22
Part No.: 11907

Technical Information

• Fluid: Air
• Design: Poppet Valve with Return Spring
• Type of Actuation: Pneumatically
• Operating Pressure: 1.5 / 7 bar
• Pilot Pressure: 2.5 / 7 bar
• Flow Rate: 80 l/min
• Adjustable Time Delay: 30 / 300 s
• Air Pilot Connection: M5
• Pneumatic Connection: M5
• Material: Aluminum, Plastic
• Temperature: -10 / 50 °C
