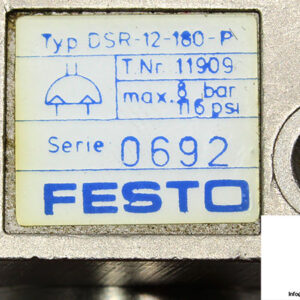

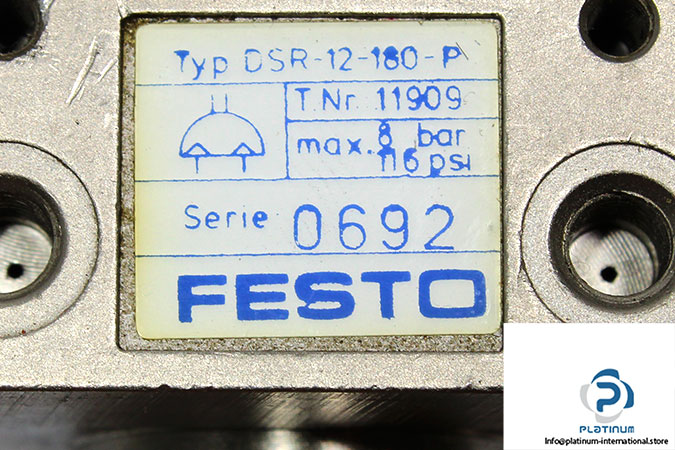

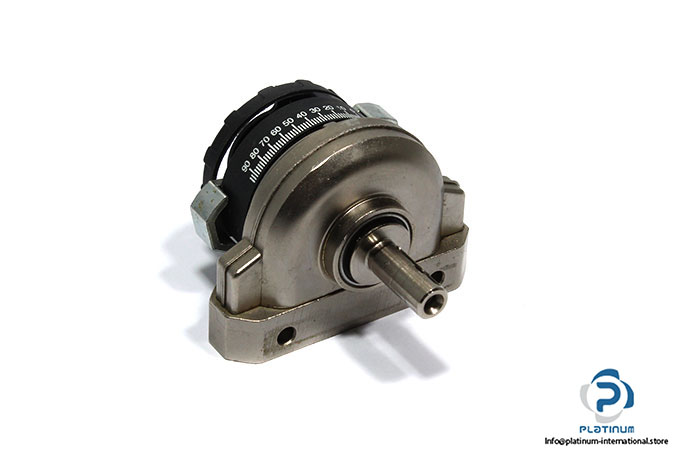

Manufacturer: Festo

Type: Quarter Turn Actuator

Model: DSR-12-180-P

Part No.: 11909

Size: 32

Cushioning Angle: 2.2 deg

Swivel Angle: 0…180 deg

Operating Pressure: 2…8 bar

Fluid: Air

Design: Rotary Vane

Torque at 6 bar: 1 Nm

Pneumatic Connection: M5

Ambient Temperature: -10…60 °C

Mode of Operation: Double-Acting

Materials: Steel Nickel-plated
