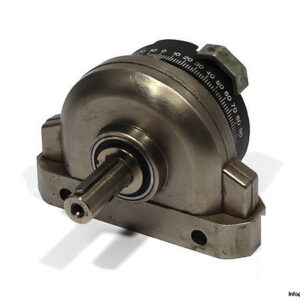

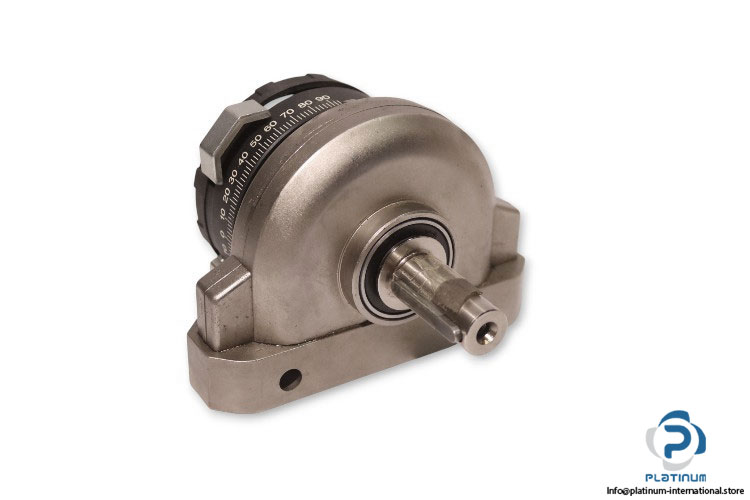

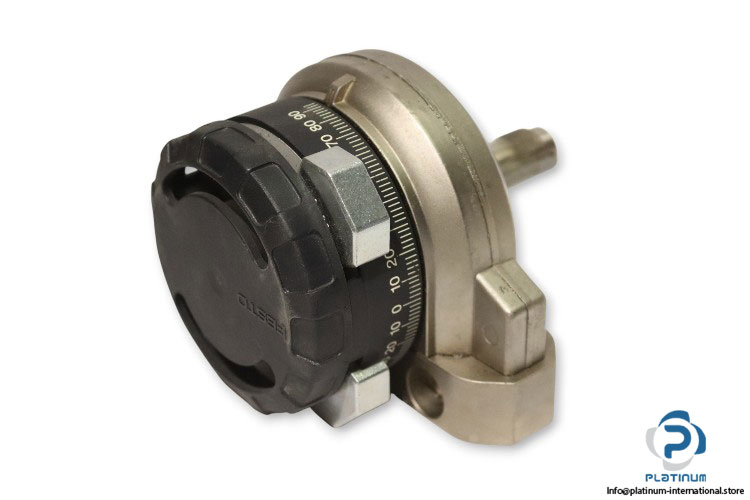

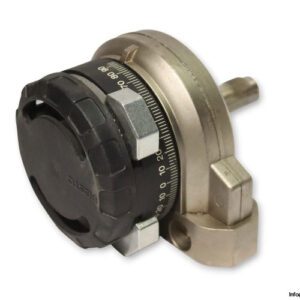

Festo DSR-32-180-P Quarter Turn Actuator
The Festo DSR-32-180-P Quarter Turn Actuator is a durable and high-performance rotary vane actuator designed for precise angular positioning. It offers smooth operation, reliable torque output, and compact construction, making it ideal for industrial automation and control applications.
Manufacturer: Festo
Type: Quarter Turn Actuator
Model: DSR-32-180-P
Part Number: 11912
Series: L702
Size: 32
Technical Information
- Cushioning Angle: 1.2 degree
- Cushioning: Elastic cushioning rings or plates at both ends
- Swivel Angle: 0 to 180 degree
- Maximum Radial Force: 200 newton
- Operating Pressure: 1.5 to 8 bar
- Fluid: Air
- Design: Rotary vane
- Torque at 6 bar: 10 newton meter
- Pneumatic Connection: G1 by 8
- Ambient Temperature: minus 10 to 60 degree Celsius
- Mode of Operation: Double acting
- Material Housing: Die cast zinc
- Materials: Steel nickel plated
