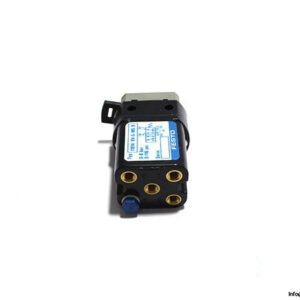

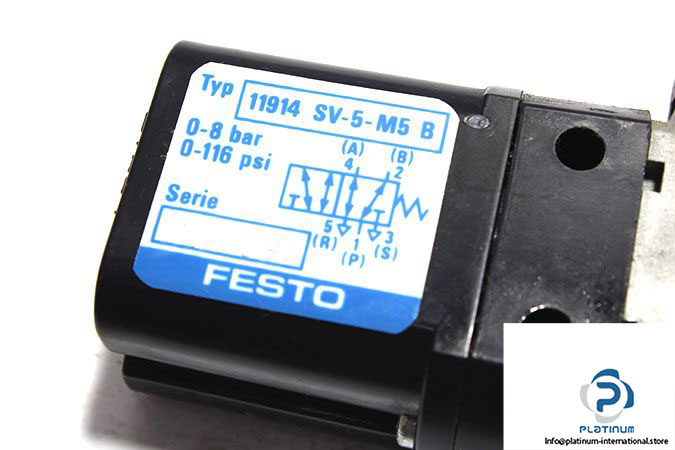

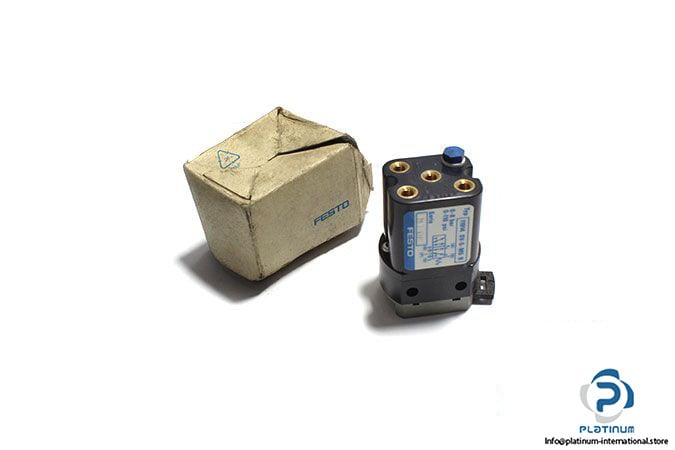

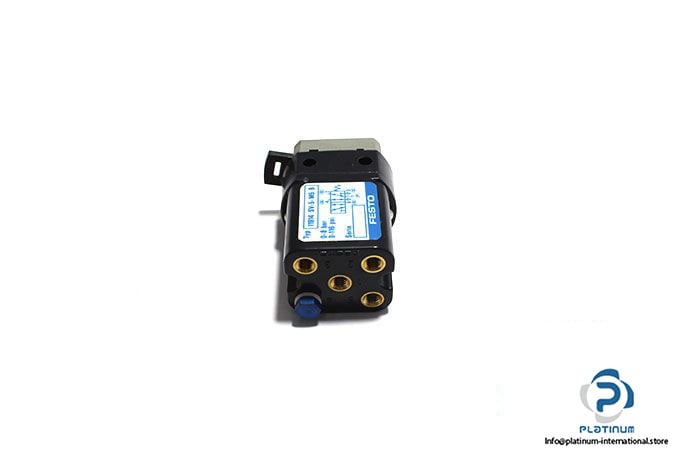

FESTO SV-5-M5 B FRONT PANEL VALVE
The FESTO SV5M5B is a high-precision front panel valve engineered for reliable manual control in pneumatic systems. Designed with a poppet valve and spring return mechanism, it delivers a stable 5/2-way monostable function with efficient airflow management.
Manufacturer: FESTO
Type: Front Panel Valve
Model: SV-5-M5-B
Part No.: 11914
Technical Information
- Fluid: Air
- Design: Poppet valve with spring return
- Function: 5/2-way, monostable
- Type of Actuation: Manually
- Operating Pressure: 0 … 8 bar
- Nominal Flow Rate: 95 l/min
- Actuating Force: 17 N
- Pneumatic Connection: M5
- Material: Polymer, Brass
- Ambient Temperature: -10 / 60 °C
