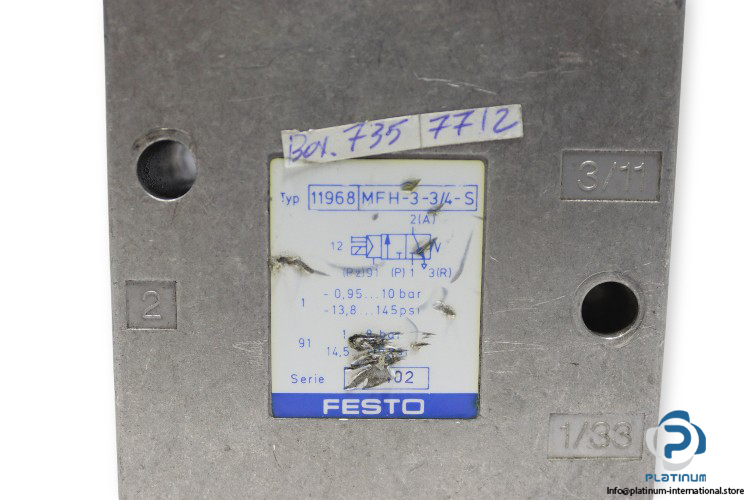

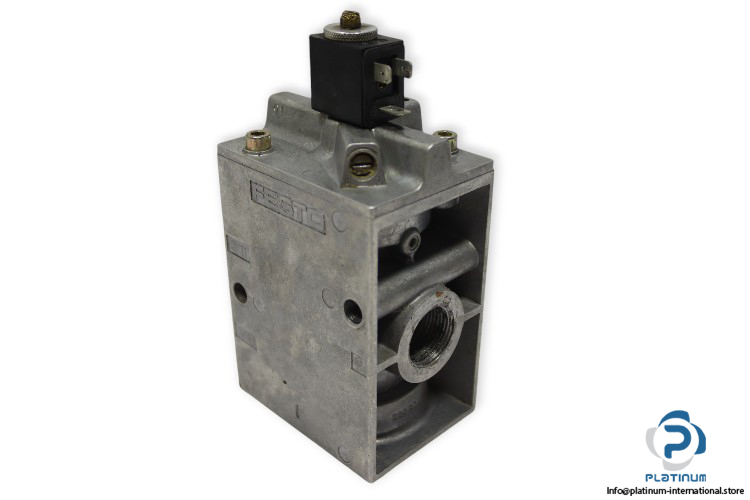

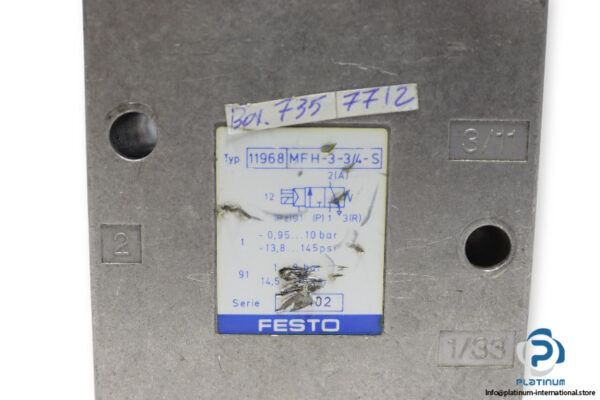

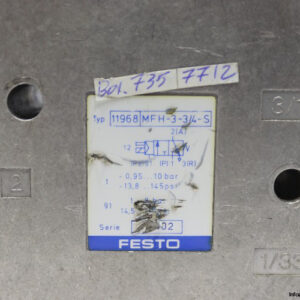

FESTO MFH-3-3/4-S SINGLE SOLENOID VALVE WITH MSFW-24-50/60 COIL
The FESTO MFH-3-3/4-S is a high-performance single solenoid valve engineered for reliable control of compressed air in industrial systems. Featuring a robust poppet seat design and a monostable 3/2-way function, this valve ensures dependable operation under demanding conditions. Paired with the FESTO MSFW-24-50/60 solenoid coil, it offers precise electrical actuation and protection for industrial automation applications.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-3/4-S
Part No.: 11968
Valve Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.95 to 10 bar
- Pilot Pressure: 1 to 8 bar
- Nominal Flow Rate: 7500 l/min
- Pneumatic Connection: G3/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 to 50 °C

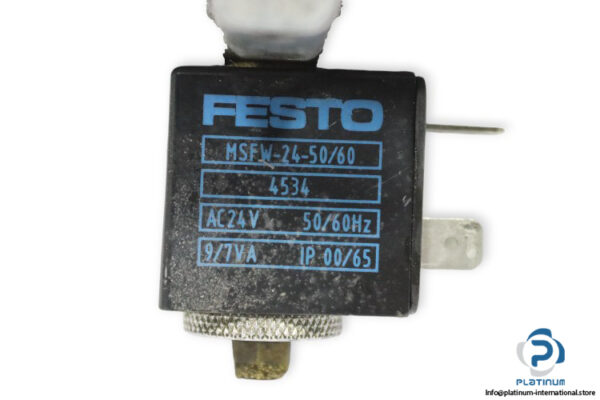

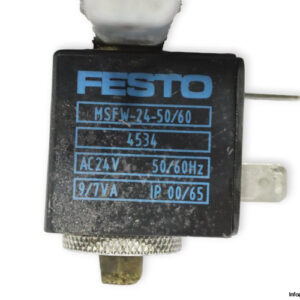

Attachment: FESTO MSFW-24-50/60 Solenoid Coil
Manufacturer: FESTO
Type: Solenoid Coil
Model: MSFW-24-50/60
Part No.: 4534
Coil Technical Information
- Supply Voltage: 24 V AC
- Frequency: 50 to 60 Hz
- Power Consumption: 9/7 VA
- Protection Class: IP00 / IP65
