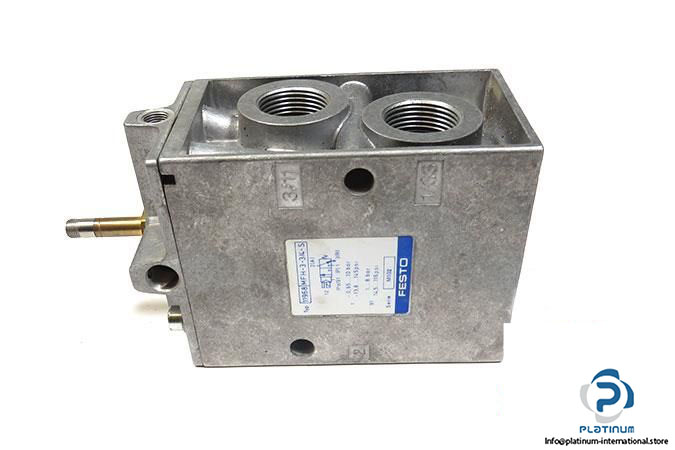

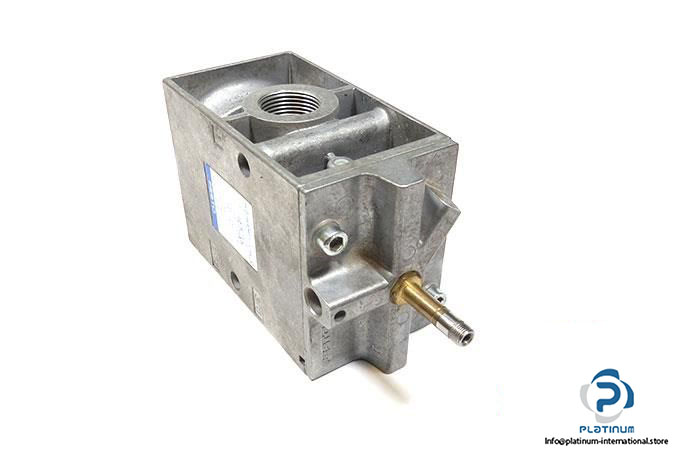

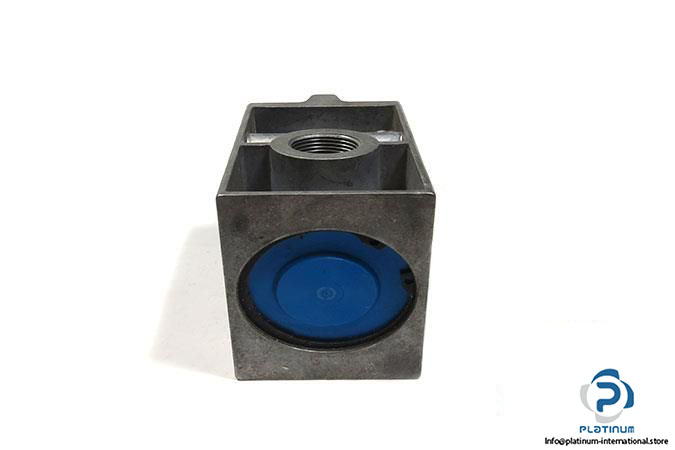

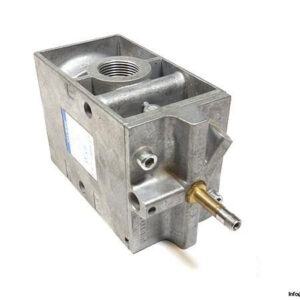

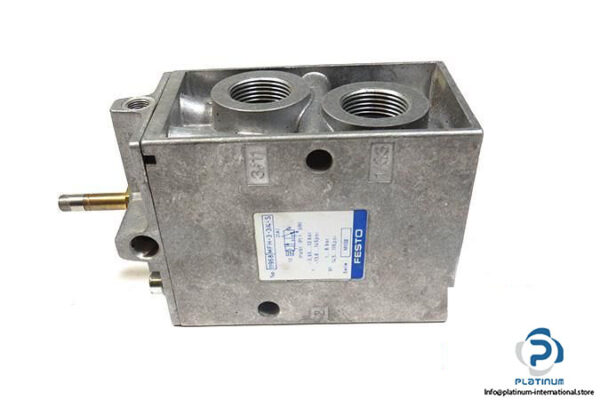

FESTO MFH-3-3/4-S SINGLE SOLENOID VALVE
The FESTO MFH-3-3/4-S is a robust single solenoid valve designed for high-flow pneumatic applications. Engineered with a poppet seat design and monostable 3/2-way function, it offers fast response times and reliable sealing. Constructed from die-cast aluminum, this valve is ideal for demanding industrial environments.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: MFH-3-3/4-S
Part No.: 11968
Technical Information
- Fluid: Air
- Design: Poppet seat
- Function: 3/2-way, closed, monostable
- Type of Actuation: Electrically
- Operating Pressure: -0.95 to 10 bar
- Pilot Pressure: 1 to 8 bar
- Nominal Flow Rate: 7500 l/min
- Pneumatic Connection: G3/4
- Material: Die-cast aluminum
- Ambient Temperature: -5 to 50 °C
