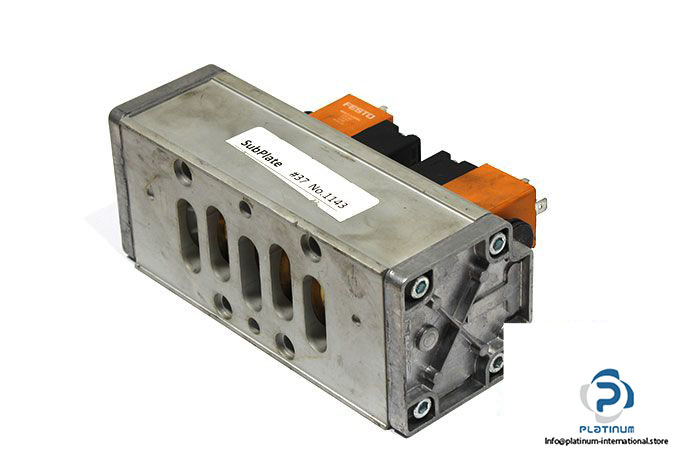

FESTO MDH-5/3E-3/4-D-4-24DC DOUBLE SOLENOID VALVE WITH COIL

The FESTO MDH-5/3E-3/4-D-4-24DC is a high-performance double solenoid valve designed for industrial pneumatic control. It features a robust piston gate design, reliable 5/3 exhausted function, and durable aluminium body, making it ideal for complex automation systems.

Manufacturer: FESTO
Type: Double Solenoid Valve

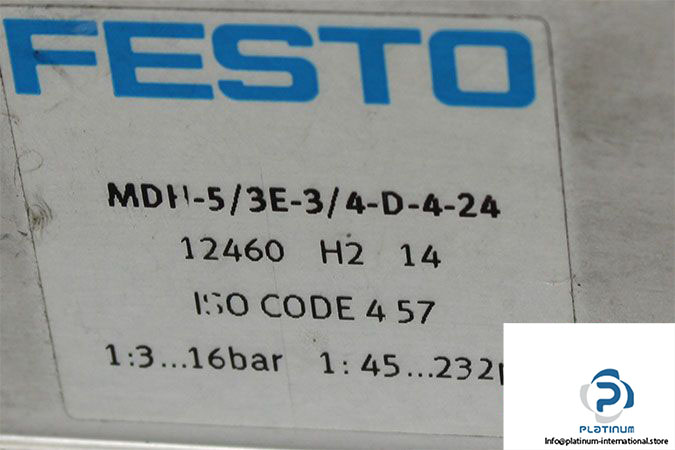

Model: MDH-5/3E-3/4-D-4-24DC
Part No.: 12460

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 exhausted
• Type of Actuation: Electrically
• Operating Pressure: 3 / 16 bar
• Nominal Flow Rate: 4800 l/min
• Pneumatic Connection: Sub-base size 4 / G1/4
• Material: Aluminium
• Ambient Temperature: -10 / 50 °C

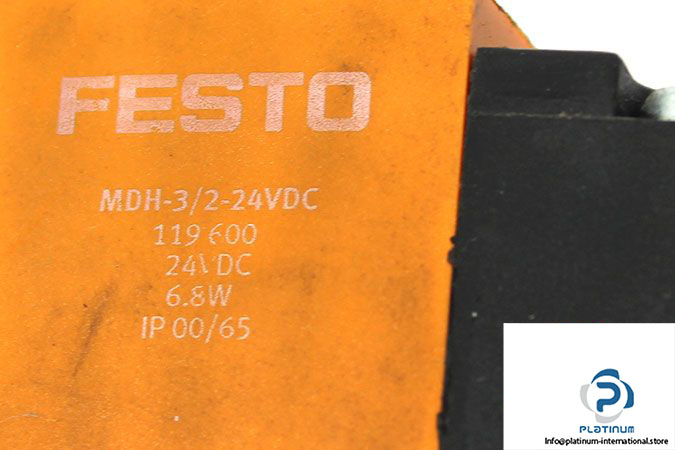

Solenoid Coil Attachment: FESTO MDH-3/2-24VDC

Manufacturer: FESTO
Type: Solenoid Coil
Model: MDH-3/2-24VDC
Part No.: 119600

Coil Technical Information

• Supply Voltage: 24 V DC
• Power Consumption: 6.8 W
• Protection Class: IP00 / IP65
