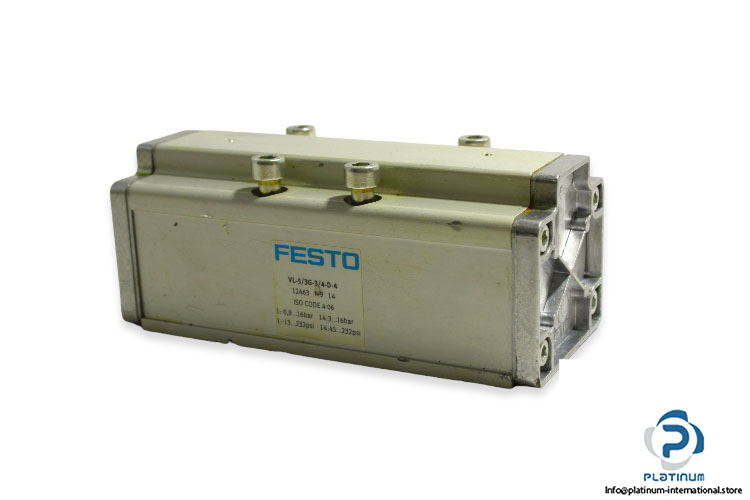

FESTO VL-5/3G-3/4-D-4 PNEUMATIC VALVE
The FESTO VL-5/3G-3/4-D-4 is a high-performance pneumatic valve designed for precise control in automated systems. Featuring a robust piston gate design and 5/3 closed function, this valve ensures reliable operation under varied pressure and temperature conditions.
Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL-5/3G-3/4-D-4
Part No.: 12463
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/3 closed
- Type of Actuation: Pneumatically
- Operating Pressure: -0.9 to 16 bar
- Pilot Pressure: 3 to 16 bar
- Nominal Flow Rate: 4800 l/min
- Pneumatic Connection: Sub-base size 4
- Material: Aluminum
- Ambient Temperature: -10 to 60 °C
