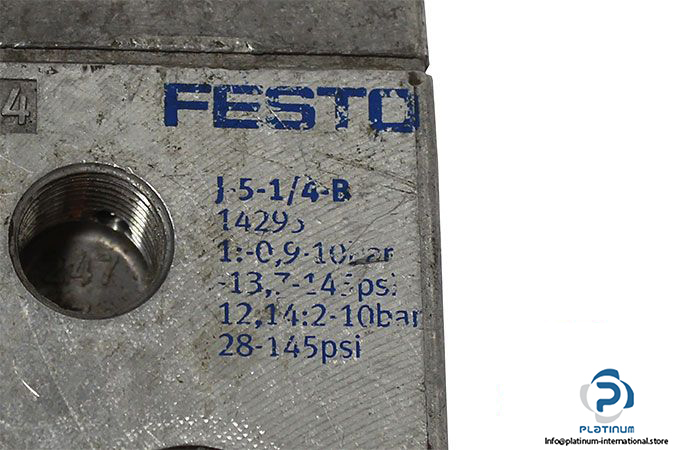

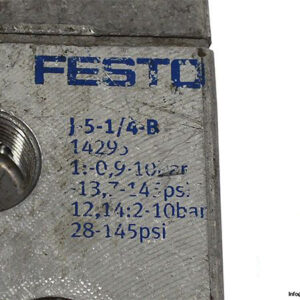

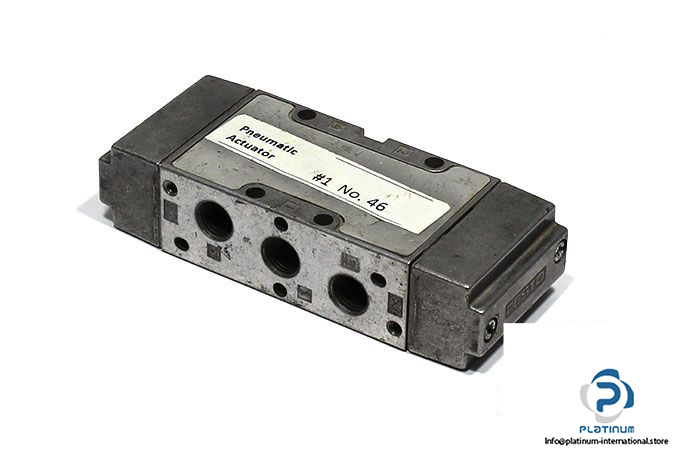

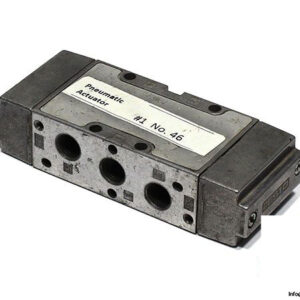

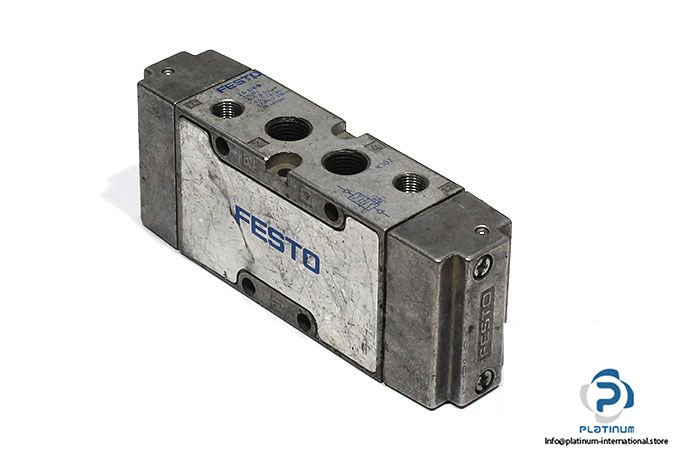

FESTO J-5-1/4-B PNEUMATIC VALVE

The FESTO J-5-1/4-B is a robust 5/2 bistable pneumatic valve engineered for high flow and dependable operation. Built with die-cast aluminum, it features a piston gate design and pneumatically actuated control, ideal for demanding industrial automation tasks.

Manufacturer: FESTO
Type: Pneumatic Valve
Model: J-5-1/4-B
Part No.: 14295

Technical Information

• Fluid: Air
• Design: Piston Gate Valve

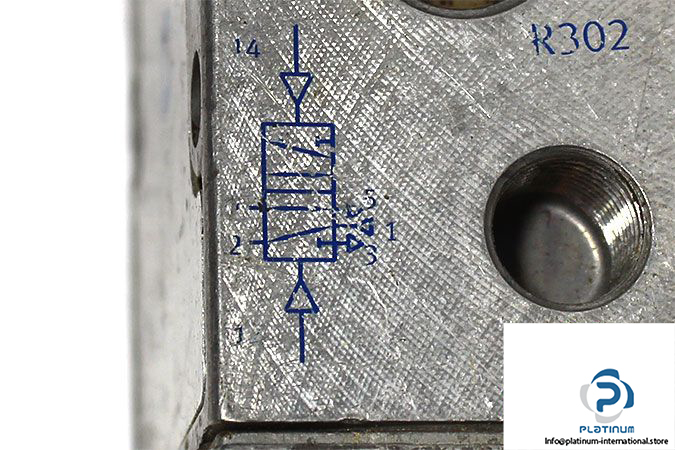

• Valve Function: 5/2 Bistable
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 … 10 bar
• Pilot Pressure: 2 … 10 bar
• Nominal Flow Rate: 1600 l/min
• Pneumatic Connection: G1/4
• Material: Die-cast Aluminum
• Ambient Temperature: -10 / 60 °C
