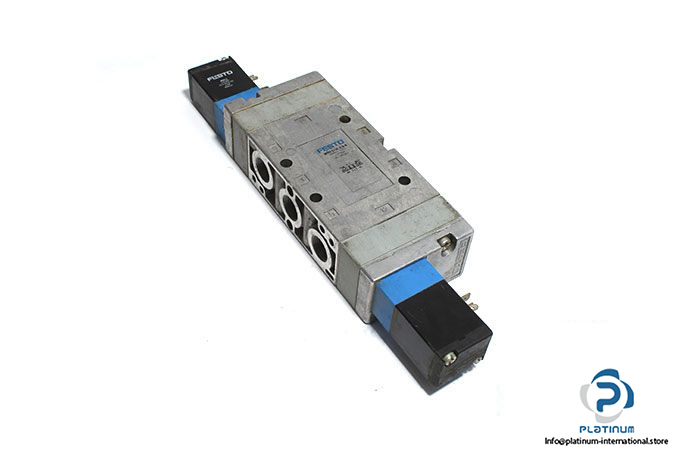

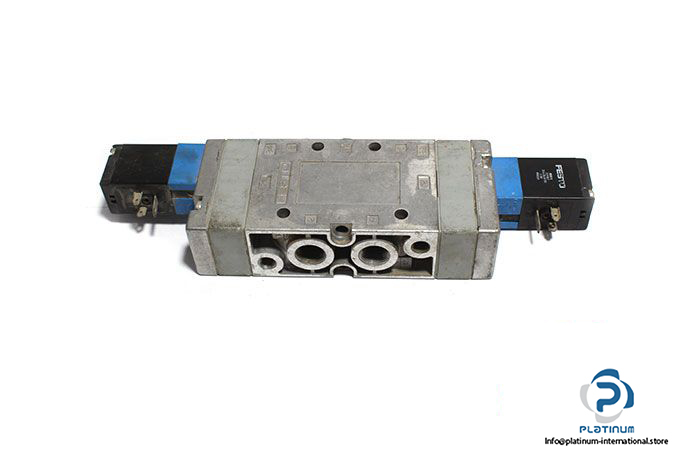

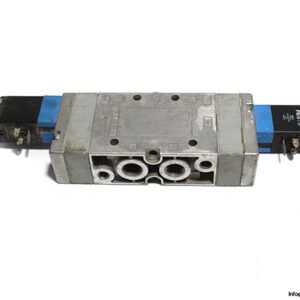

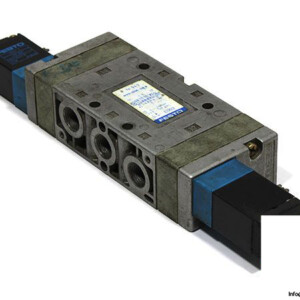

FESTO MVH-5/3E-3/8-B DOUBLE SOLENOID VALVE WITH MSV-3 COIL
The FESTO MVH-5/3E-3/8-B is a high-performance double solenoid valve with a 5/3 exhausted function, engineered for fast and reliable pneumatic control. Designed with a piston gate mechanism, this valve ensures efficient air flow regulation in demanding industrial environments. It is complemented by the FESTO MSV-3 solenoid coil for optimal electrical actuation.
Manufacturer: FESTO
Type: Double Solenoid Valve

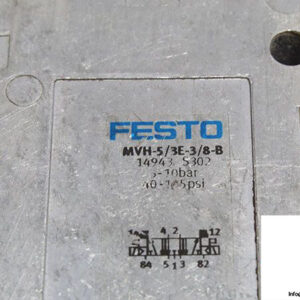

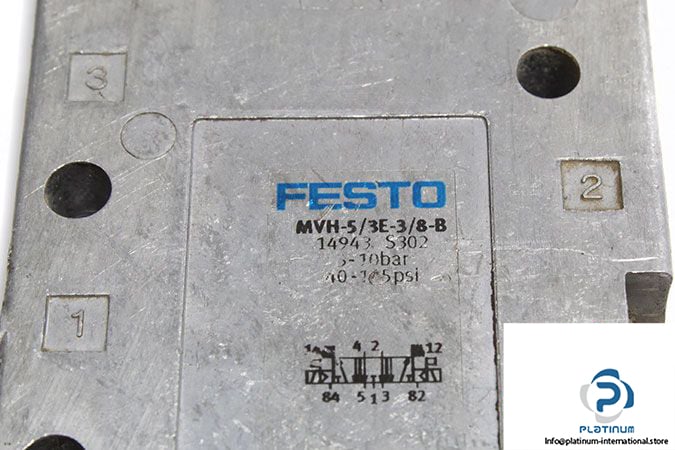

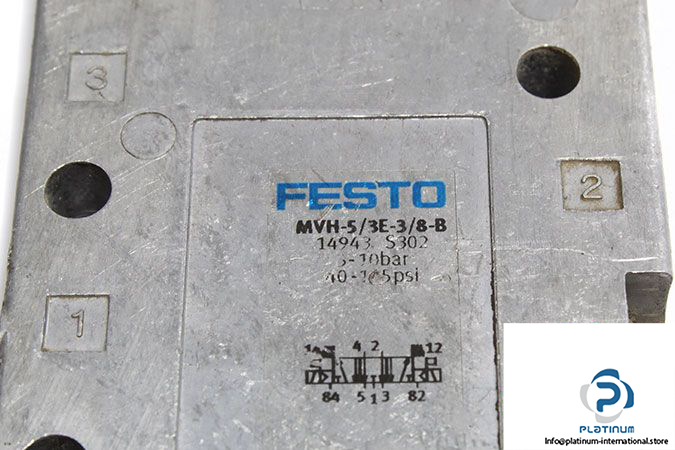

Model: MVH-5/3E-3/8-B
Part No.: 14943
Technical Information
- Fluid: Air
- Design: Piston gate valve
- Function: 5/3 exhausted
- Type of Actuation: Electrically
- Operating Pressure: 3 … 10 bar
- Nominal Flow Rate: 2200 l/min
- Pneumatic Connection: G3/8
- Material: Die-cast Aluminum
- Ambient Temperature: -5 / 50 °C
Attachment: FESTO 119807 SOLENOID COIL
Manufacturer: FESTO
Type: Solenoid Coil

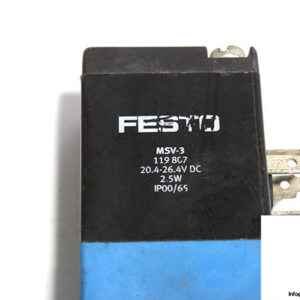

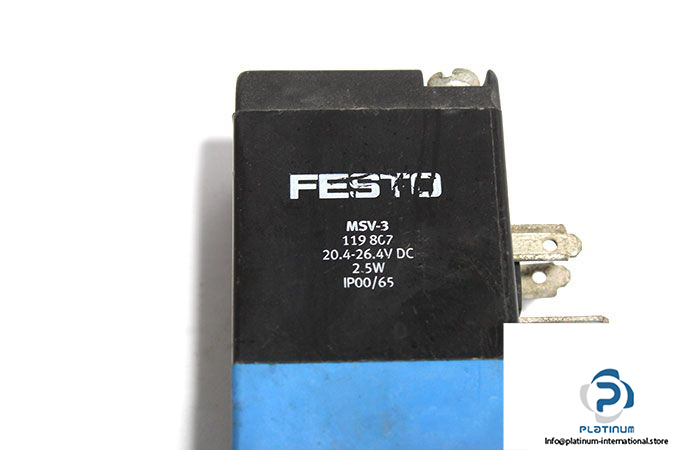

Model: MSV-3
Part No.: 119807
Solenoid Coil Technical Information
- Supply Voltage: 20.4 … 26.4 V DC
- Power Consumption: 2.5 W
- Protection Class: IP00 / IP65
