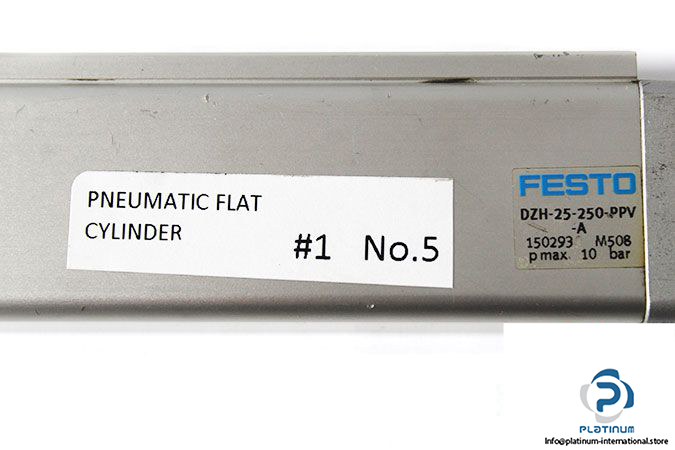

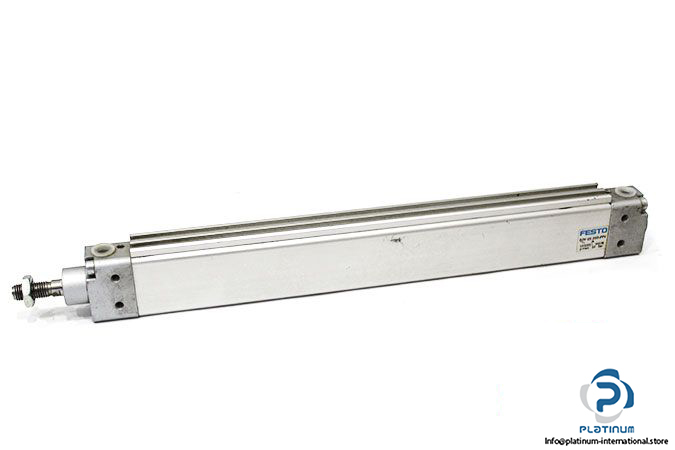

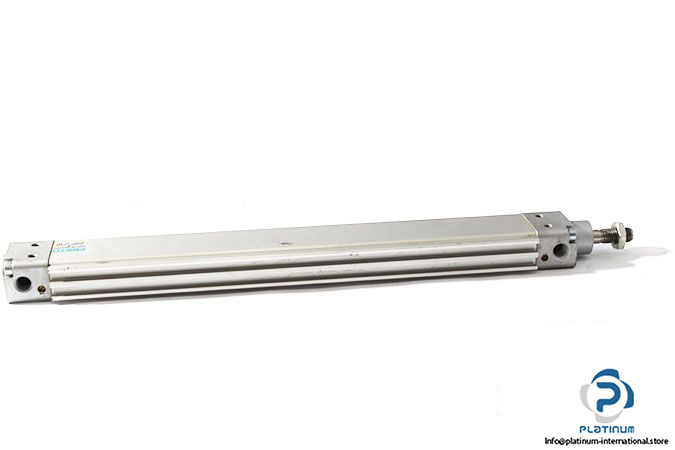

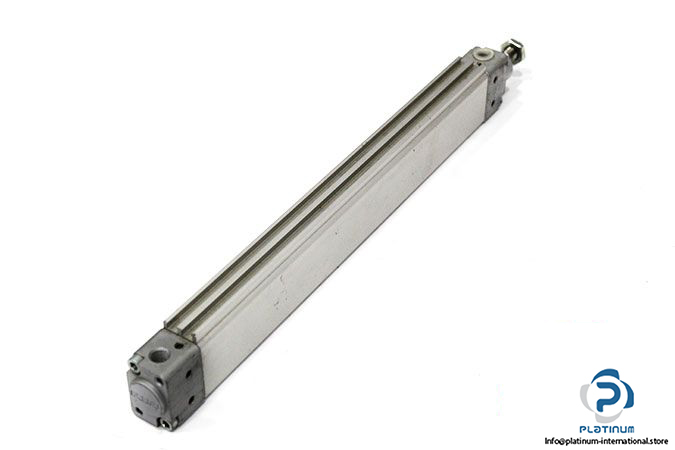

Manufacturer: FESTO

Type: Pneumatic Flat Cylinder

Model: DZH-25-250-PPV-A

Part No.: 150293

Acting Type: Double-acting

Design: Flat

Symbol: 00991235

Working Pressure: 1bar…10bar

Piston diameter: 25 mm

Stroke: 250 mm

Cushioning: Pneumatic cushioning, adjustable at both ends, 17 mm

Type of Mounting: Optionally: With internal thread, With accessories

Positioning sensing: For proximity sensor

Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]

Housing/cover material: Aluminum

Piston rod material: High-alloy steel

Ambient Temperature: -20 °C … 80 °C

Pneumatic Connections: G 1/8

Weight: 0.76 kg
