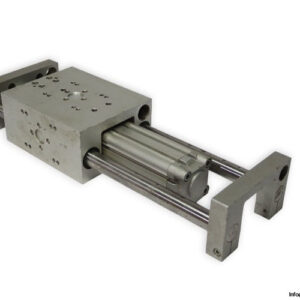

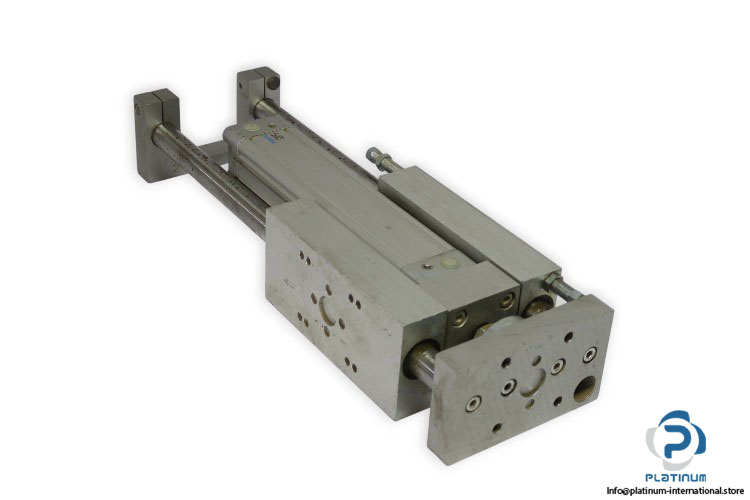

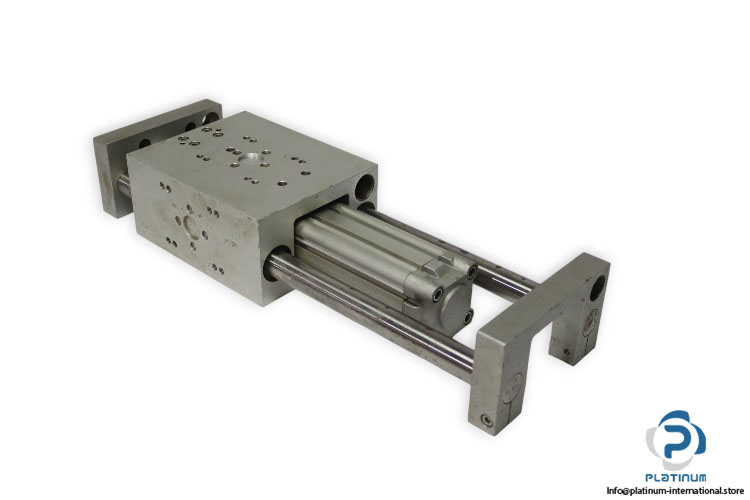

Festo SLE-50-200-KF-A-G Linear Drive Unit
The Festo SLE-50-200-KF-A-G Linear Drive Unit is a precision pneumatic drive with integrated recirculating ball bearing guidance, designed for smooth and accurate linear motion. It offers a 200 mm stroke length, robust die-cast aluminum construction, and flexible mounting options, making it suitable for a wide range of automation applications.

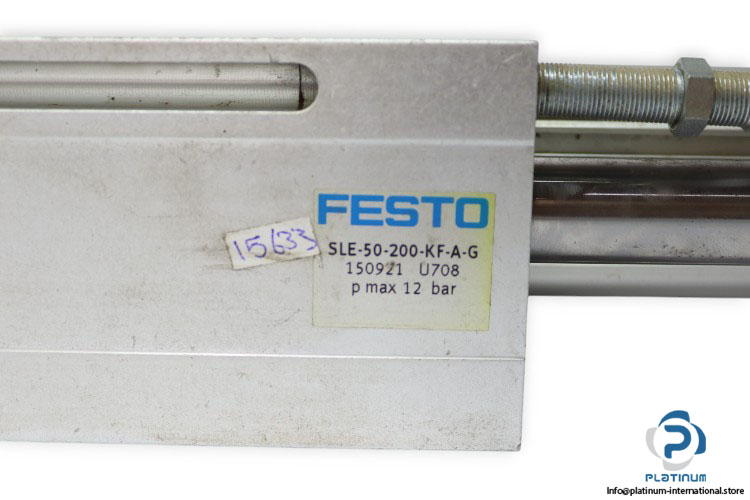

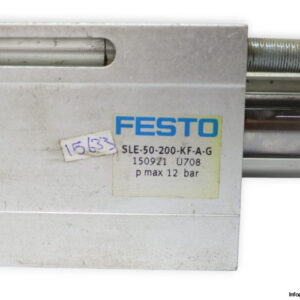

Manufacturer: Festo
Type: Linear Drive Unit
Model: SLE-50-200-KF-A-G
Part No.: 150921
Ref. Code: U708
Technical Information
- Stroke Length: 200 mm
- Piston Diameter: 50 mm
- Mounting Position: Any
- Guide: Recirculating Ball Bearing Guide
- Structural Design: Guide
- Position Sensing: For Proximity Sensor
- Operating Pressure: 1.5 to 12 bar
- Mode of Operation: Double-acting
- Operating Medium: Compressed Air
- Theoretical Force at 6 bar (Retracting): 990 N
- Theoretical Force at 6 bar (Advancing): 1178 N
- Pneumatic Connection: G1/4
- Cover Material: Die-Cast Aluminum
- Material Housing: Die-Cast Aluminum
- Temperature Range: -20 to 80 °C

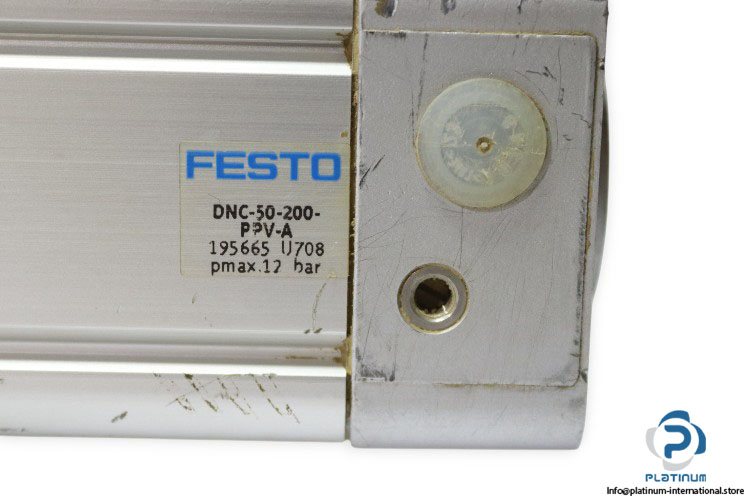

Included Attachment
Manufacturer: Festo
Type: ISO Cylinder
Model: DNC-50-200-PPV-A
Part No.: 195665
Ref. Code: U708
- Stroke: 200 mm
- Piston Diameter: 50 mm
- Pressure: max. 12 bar
