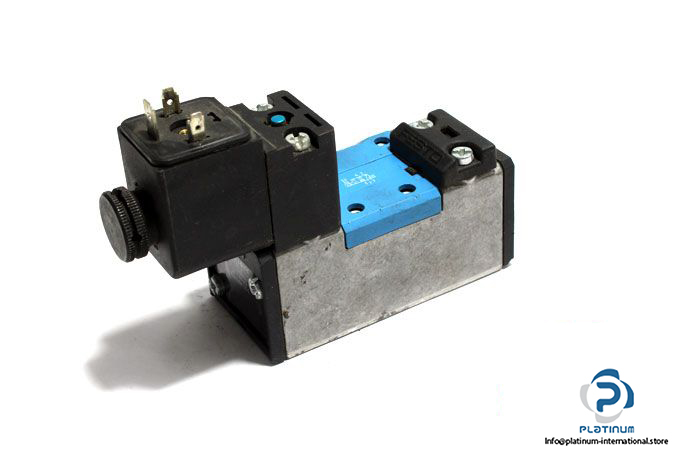

FESTO MFH-5/2-D-1-C SINGLE SOLENOID VALVE WITH NUMATICS COIL
The FESTO MFH-5/2-D-1-C is a robust single solenoid valve engineered for efficient control of pneumatic systems. Built with a piston gate design and paired with a high-performance NUMATICS 228-777 A solenoid coil, this valve ensures consistent, reliable operation across a wide pressure and temperature range.
Manufacturer: FESTO
Type: Single Solenoid Valve

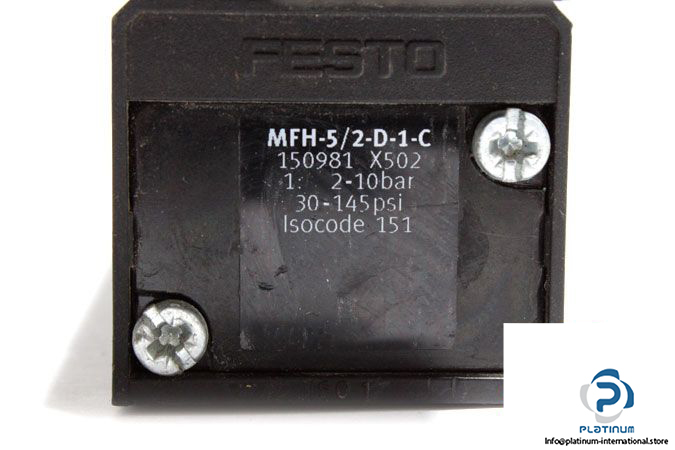

Model: MFH-5/2-D-1-C
Part No.: 150981
Technical Information
- Fluid: Air
- Design Structure: Piston gate valve
- Valve Function: 5/2-way, monostable
- Type of Actuation: Electrically
- Operating Pressure: 2 / 10 bar
- Nominal Flow Rate: 1200 l/min
- Material: Die-cast aluminium
- Pneumatic Connection: Sub-base
- Ambient Temperature: -5 / 50 °C

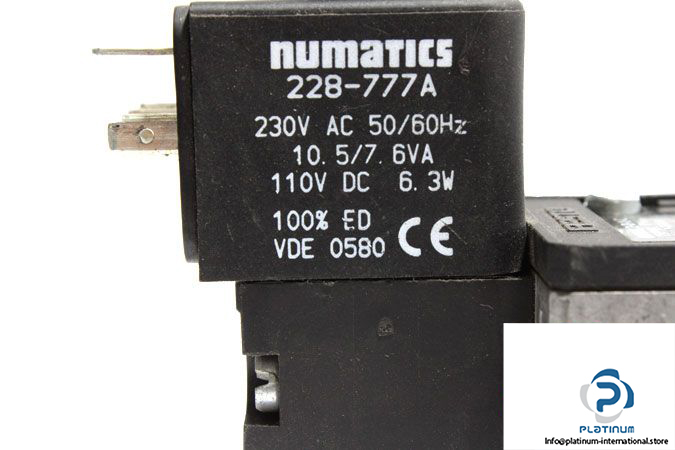

Attachment: NUMATICS 228-777 A SOLENOID COIL
Manufacturer: NUMATICS
Type: Solenoid Coil
Model: 228777A
Coil Technical Information
- Supply Voltage: 230 V AC / 110 V DC
- Frequency: 50 … 60 Hz
- Power Consumption: 6.3 W / 5 / 7.6 VA
- Protection Class: IP65
