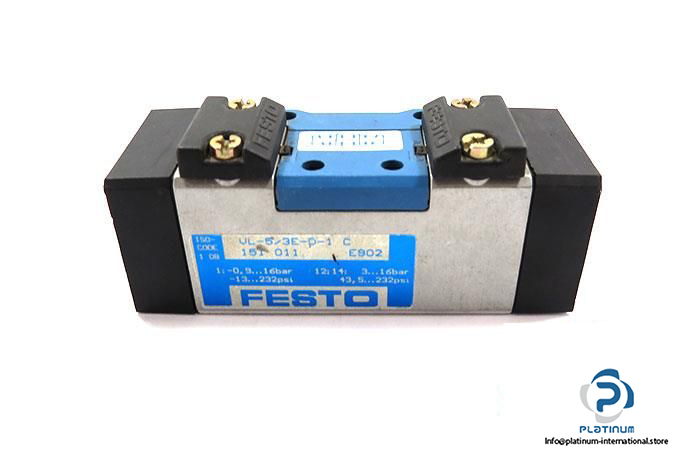

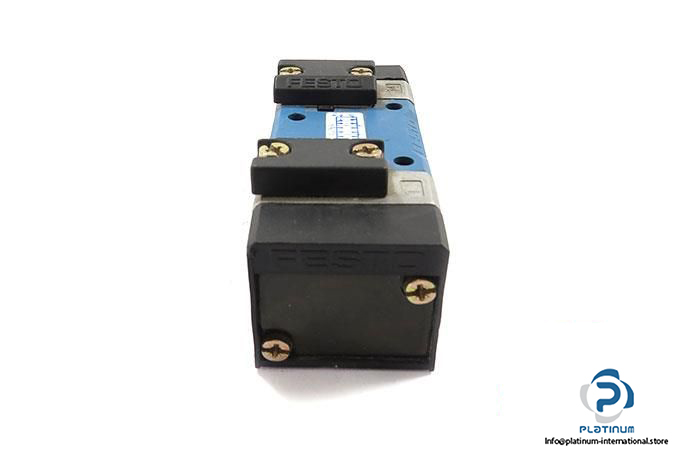

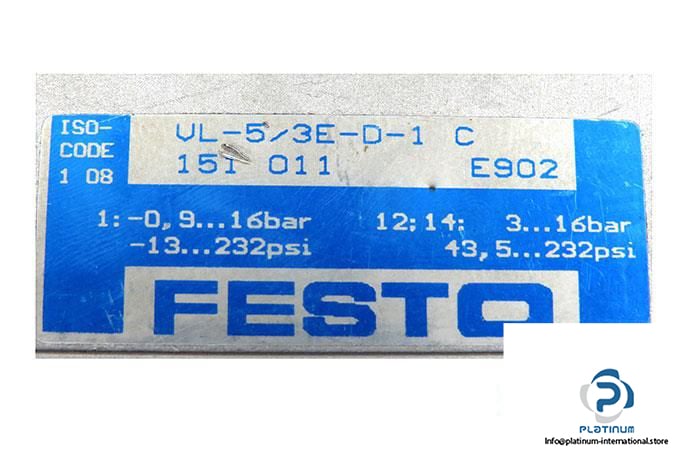

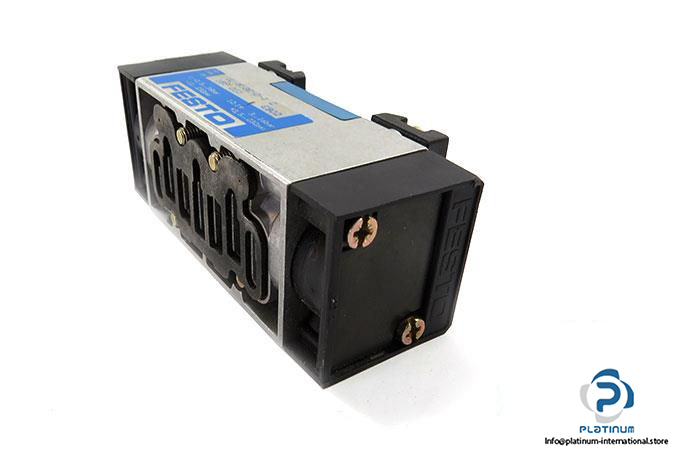

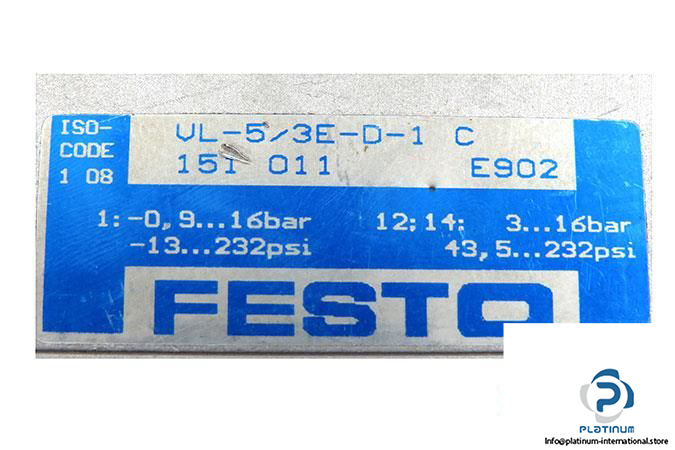

FESTO VL-5/3E-D-1-C PNEUMATIC VALVE

The FESTO VL-5/3E-D-1-C is a high-performance pneumatic valve designed for efficient air flow control in demanding automation environments. Built with a durable die-cast aluminum body, this 5/3 exhausted piston gate valve ensures reliable and precise operation.

Manufacturer: FESTO
Type: Pneumatic Valve
Model: VL-5/3E-D-1-C
Part No.: 151011

Technical Information

• Fluid: Air
• Design: Piston gate valve
• Function: 5/3 exhausted
• Type of Actuation: Pneumatically
• Operating Pressure: -0.9 … 16 bar
• Pilot Pressure: 3 … 16 bar
• Nominal Flow Rate: 1200 l/min
• Pneumatic Connection: Sub-base size 1
• Material: Die-cast aluminum
• Ambient Temperature: -10 / 60 °C
