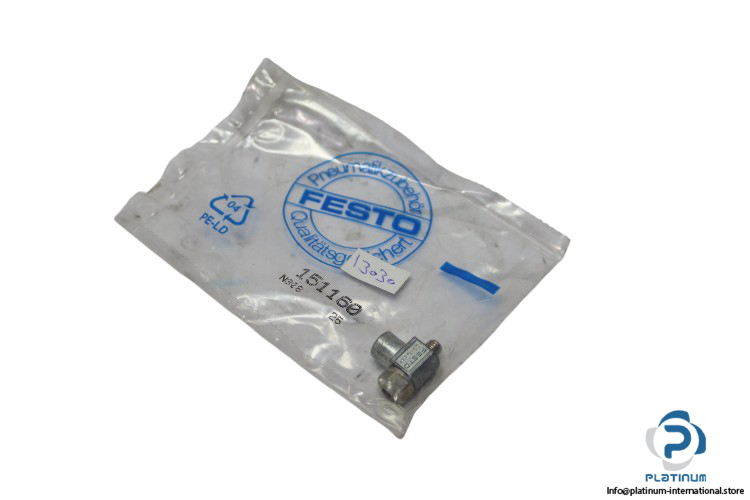

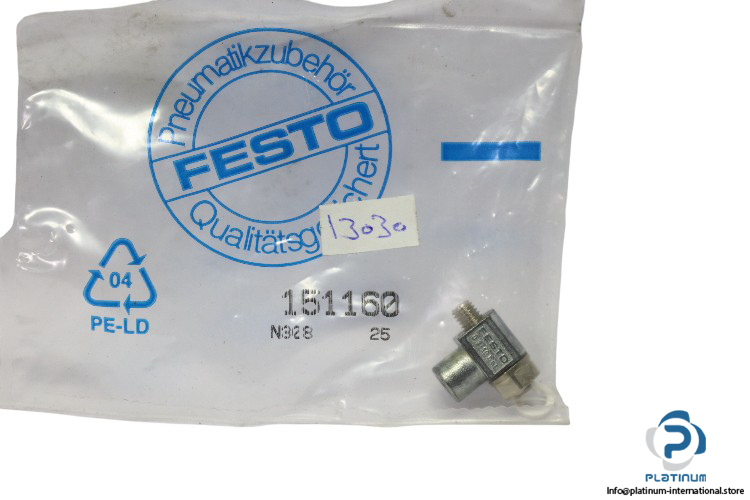

Festo GRLA-M5-B One-Way Flow Control Valve
The Festo GRLA-M5-B One-Way Flow Control Valve is designed to regulate the exhaust air flow direction, ensuring precise control of airflow in pneumatic systems. This valve offers high reliability and flexibility with adjustable settings, making it ideal for compressed air applications.
Manufacturer: FESTO
Type: One-way Flow Control Valve
Model: GRLA-M5-B
Part No.: 151160
Technical Data:
- Medium: Compressed air
- Valve Function: Exhaust air one-way flow control function
- Operating Pressure: 0.2 bar … 10 bar
- Standard Nominal Flow Rate in Flow Control Direction: 95 l/min
- Pneumatic Connection, Port 1: M5
- Adjustment Component: Slotted head screw
- Material Adjusting Screw: Brass
- Material Swivel Fitting: Die-cast zinc
