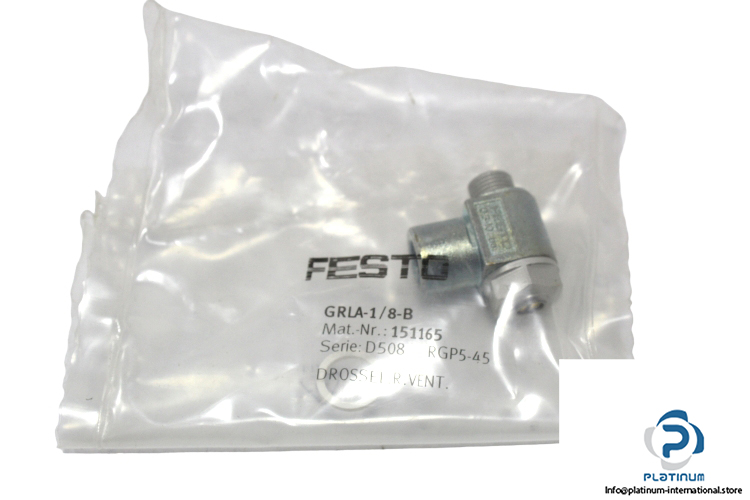

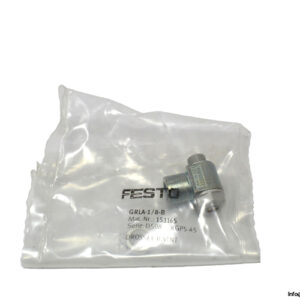

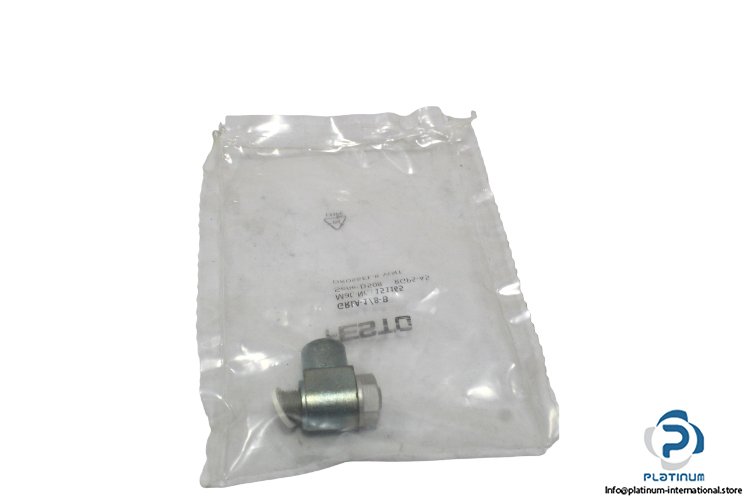

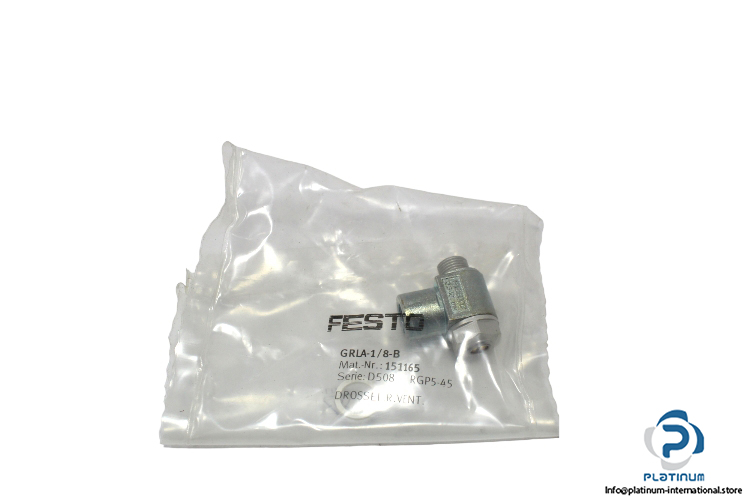

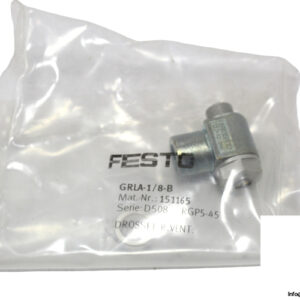

FESTO GRLA-1/8-B ONE-WAY FLOW CONTROL VALVE
The FESTO GRLA-1/8-B is a compact, precision-engineered one-way flow control valve designed to regulate pneumatic air flow in industrial automation systems. With a screw-in mounting style and adjustable slotted screw, it offers smooth, reliable performance under varying conditions.
Manufacturer: FESTO
Type: One-Way Flow Control Valve
Model: GRLA-1/8-B
Part No.: 151165
Technical Information
- Working Pressure: 0.3 / 10 bar
- Standard Nominal Flow Rate (Flow Control Direction): 340 l/min
- Standard Nominal Flow Rate (Blocked Direction): 260 … 420 l/min
- Pneumatic Connection 1: G1/8
- Pneumatic Connection 2: G1/8
- Adjustment: Slotted Screw
- Mounting: Screw-In
- Fluid Temperature Range: -10 / 60 °C
