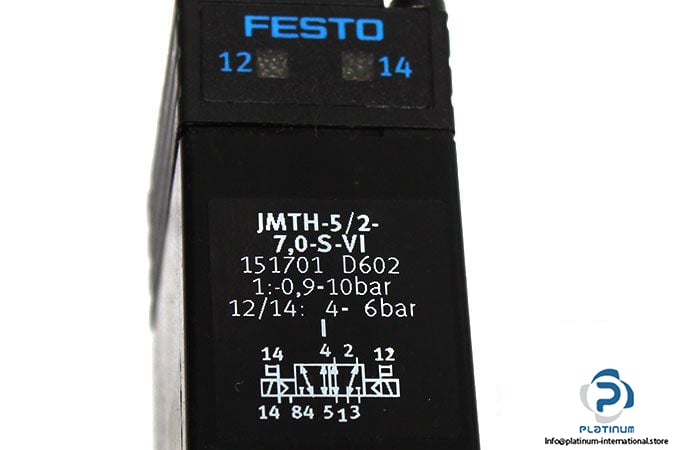

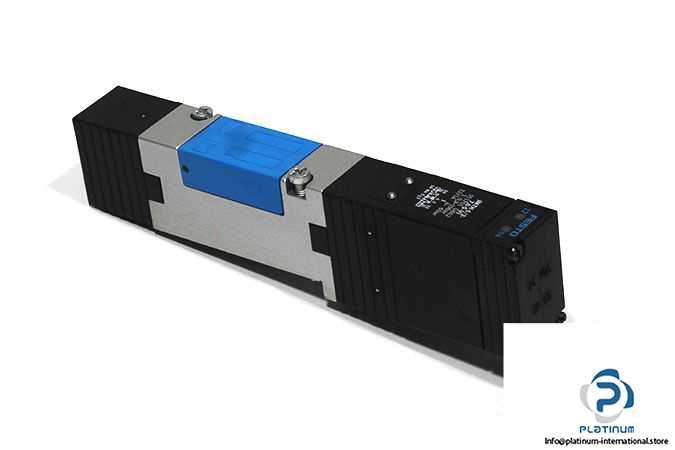

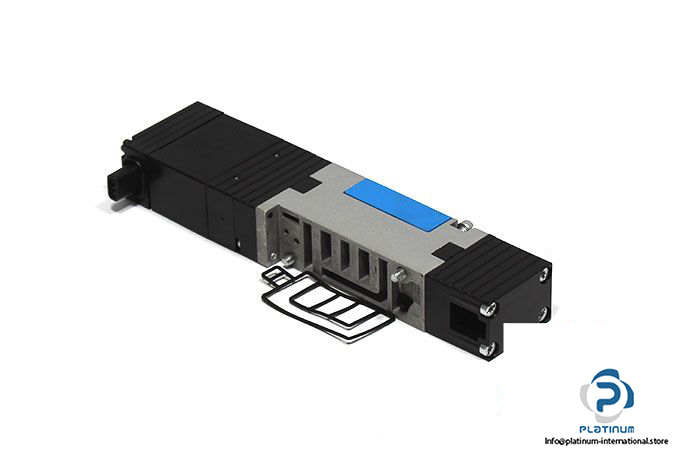

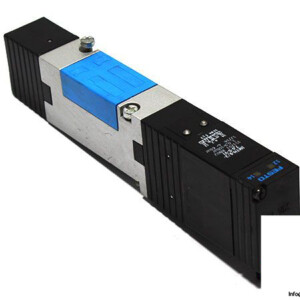

FESTO JMTH-5/2-7,0-S-VI SINGLE SOLENOID VALVE
The FESTO JMTH-5/2-7,0-S-VI is a high-performance single solenoid valve engineered for pneumatic control applications. Featuring a bistable 5/2 function and sub-base connection, it is ideal for robust, fast-switching operations in automation systems.
Manufacturer: FESTO
Type: Single Solenoid Valve
Model: JMTH-5/2-7,0-S-VI
Part No.: 151701
Technical Information
- Fluid: Air
- Design: Piston slide
- Valve Function: 5/2 bistable
- Type of Actuation: Electrically
- Operating Pressure: -0.9 / 10 bar
- Nominal Flow Rate: 1300 l/min
- Pneumatic Connection: Sub-base
- Material: Die-cast aluminium
- Ambient Temperature: -5 / 50 °C
