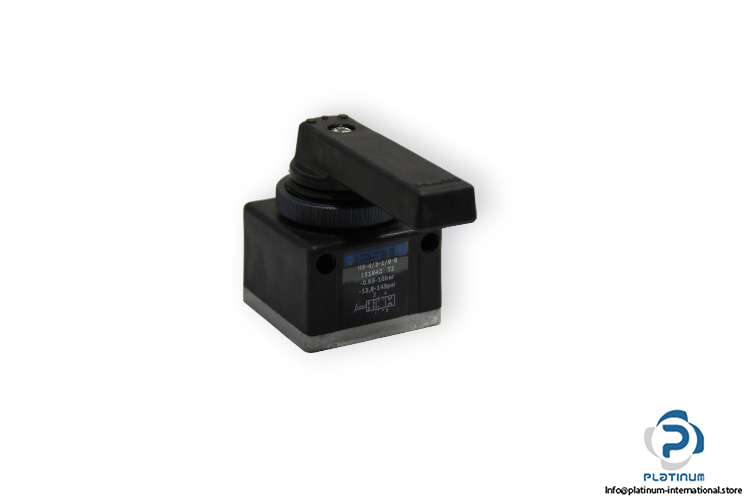

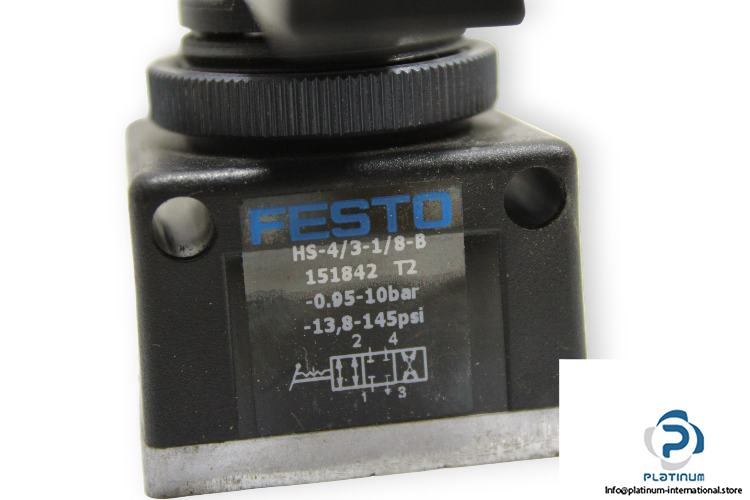

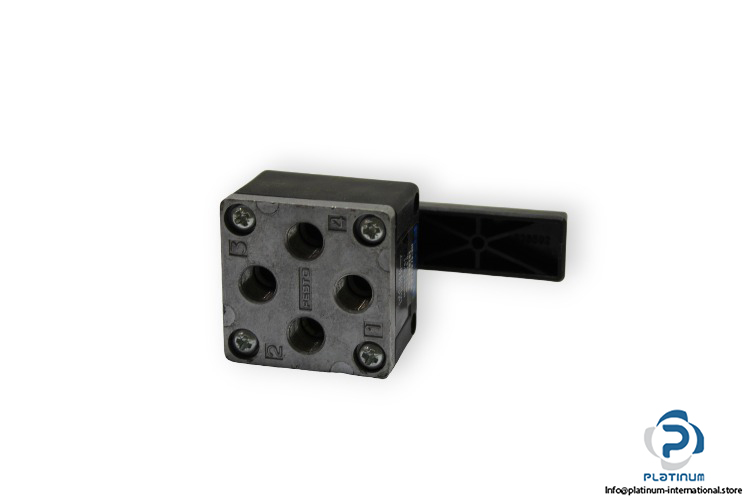

FESTO HS-4/3-1/8-B HAND LEVER VALVE
The FESTO HS-4/3-1/8-B is a manually operated hand lever valve designed with a rotary slide mechanism. With high durability and a nominal flow rate of 700 l/min, this 4/3-way valve is ideal for controlling air flow in demanding pneumatic systems.
Manufacturer: FESTO
Type: Hand Lever Valve
Model: HS-4/3-1/8-B
Part No.: 151842
Technical Information
- Fluid: Air
- Design: Rotary slide valve
- Function: 4/3 way
- Type of Actuation: Manually
- Operating Pressure: -0.95 to 10 bar
- Nominal Flow Rate: 700 l/min
- Pneumatic Connection: G1/8
- Material: Plastic
- Ambient Temperature: -20 to 60 °C
