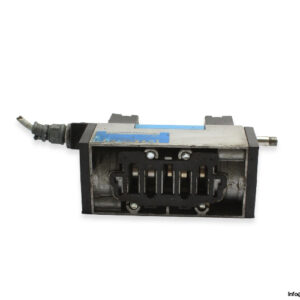

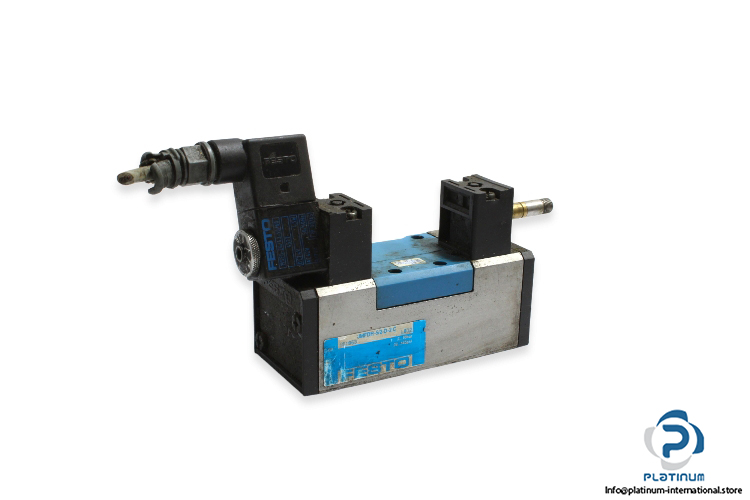

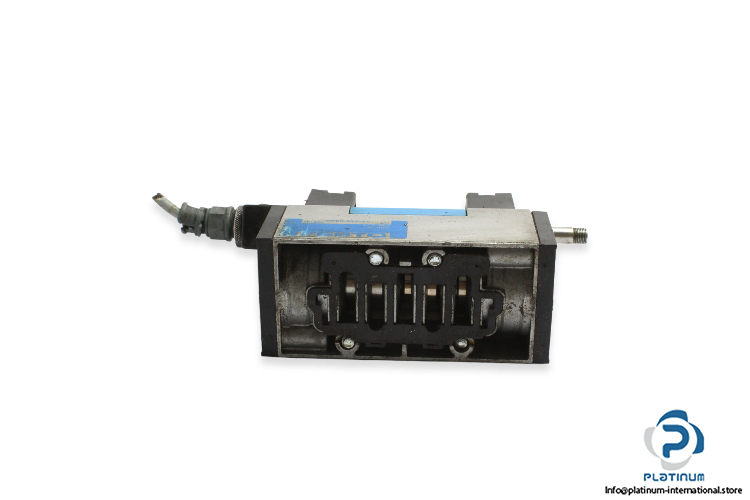

FESTO JMFDH-5/2-D-2-C DOUBLE SOLENOID VALVE WITH SOLENOID COIL
The Festo JMFDH-5/2-D-2-C is a high-performance double solenoid valve engineered for precise air control in industrial systems. This 5/2-way, bistable valve uses piston gate technology and is suitable for demanding pneumatic applications. It comes complete with the Festo MSFG-24/42-50/60 solenoid coil for reliable actuation.
Manufacturer: Festo
Type: Double Solenoid Valve

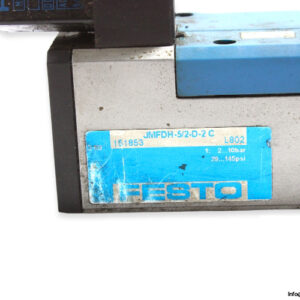

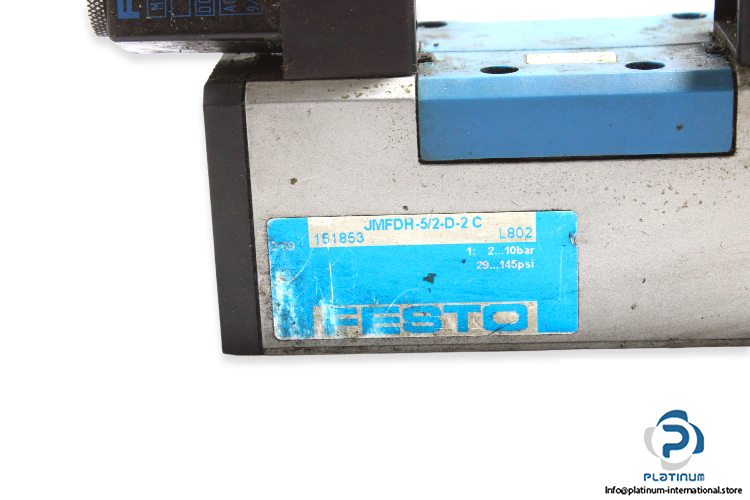

Model: JMFDH-5/2-D-2-C
Part No.: 151853
Technical Information
- Fluid: Air
- Design: Piston Gate Valve
- Function: 5/2-Way, Bistable, Dominant
- Type of Actuation: Electrically
- Operating Pressure: 2 … 10 Bar
- Nominal Flow Rate: 2300 L/Min
- Pneumatic Connection: Sub-Base Size 2
- Material: Die-Cast Aluminium
- Ambient Temperature: -5 / 40 °C

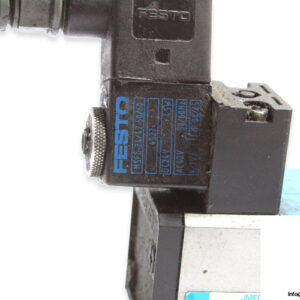

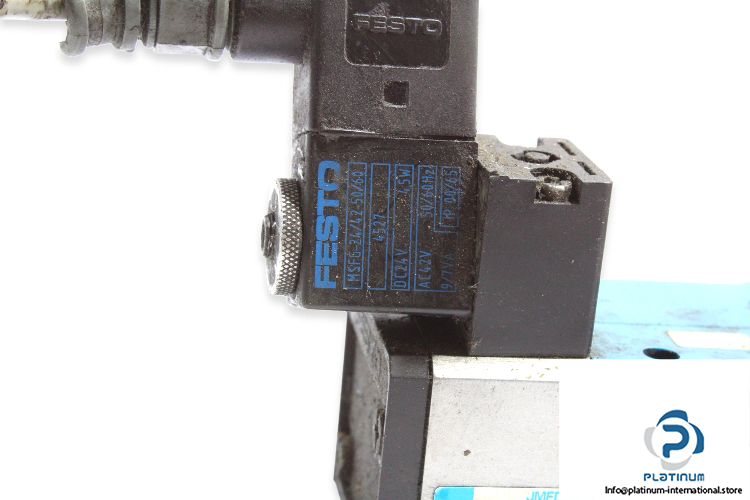

Attachment: FESTO 4527 SOLENOID COIL
Manufacturer: Festo
Type: Solenoid Coil
Model: MSFG-24/42-50/60
Part No.: 4527
Coil Technical Information
- Supply Voltage: 42 V AC / 24 V DC
- Frequency: 50 … 60 Hz
- Power Consumption: 4.5 W / 9/7 VA
- Protection Class: IP00 / IP65
