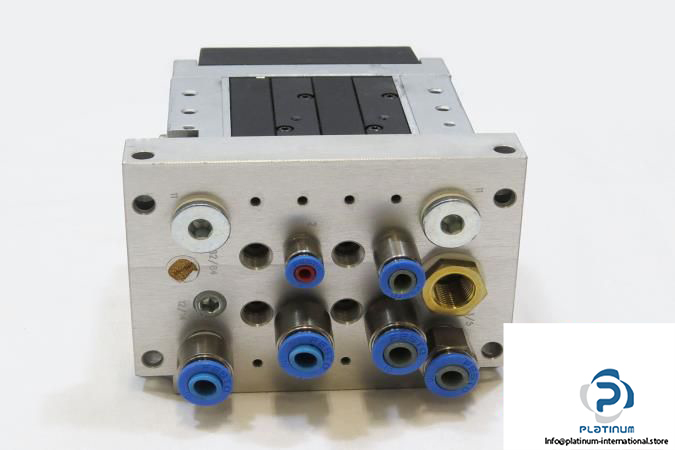

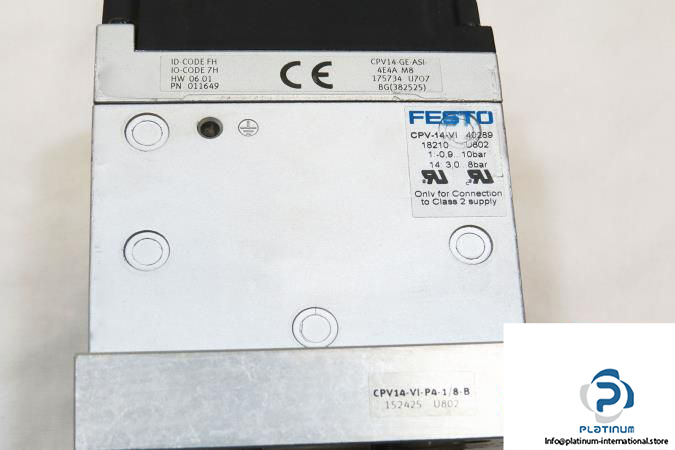

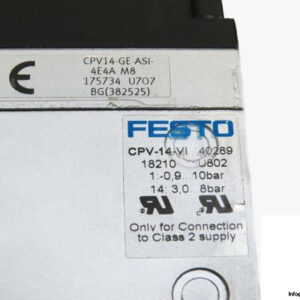

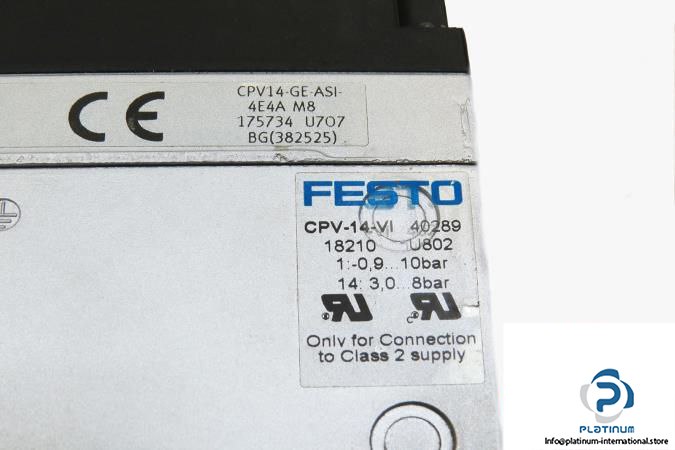

FESTO CPV14-VI 4-WAY VALVE TERMINAL WITH ATTACHMENTS

The FESTO CPV14-VI is a compact and versatile 4-way valve terminal designed for advanced pneumatic automation systems. Built to operate reliably within demanding pressure and temperature ranges, this unit integrates multiple FESTO components for extended functionality and ease of installation.

Manufacturer: FESTO
Type: 4-way Valve Terminal
Model: CPV14-VI
Part No.: 18210

Technical Information

• Fluid: Air
• Operating Pressure: -0.9 … 10 bar
• Pneumatic Connection: G1/8
• Ambient Temperature: -5 / 50 °C

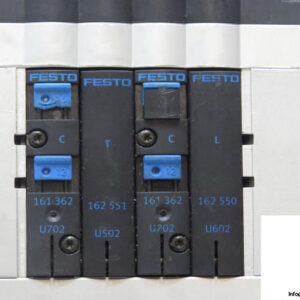

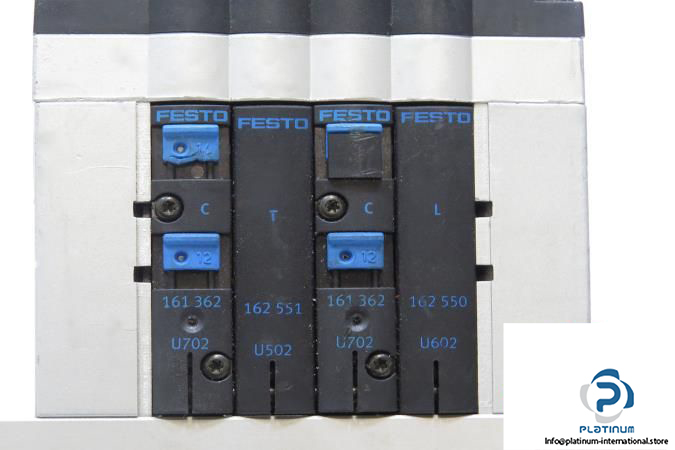

Attachments

FESTO 161362 “ SOLENOID VALVE
Model: CPV14-M1H-2X3-GLS-1/8
Part No.: 161362

• Fluid: Air
• Design: Piston gate valve
• Function: 2×3/2-way, monostable, closed
• Type of Actuation: Electrically
• Operating Pressure: -0.9 / 10 bar
• Flow Rate: 800 l/m
• Width: 14 mm
• Voltage: 24 V DC
• Port Size: G1/8
• Temperature: -5 … 50 °C

FESTO 162550 “ BLANKING PLATE
Model: CPV14-RZP
Part No.: 162550

FESTO 162551 “ SEPARATOR PLATE
Model: CPV14-DZP
Part No.: 162551

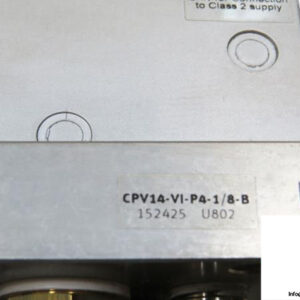

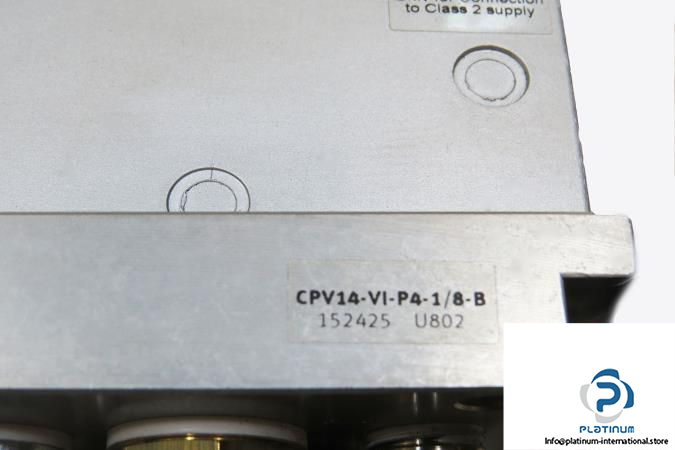

FESTO 152425 “ MULTI-PIN
Model: CPV14-VI-P4-1/8-B
Part No.: 152425

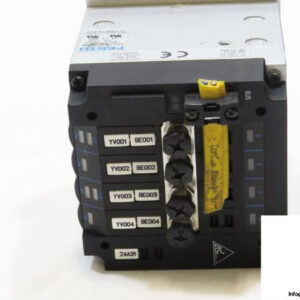

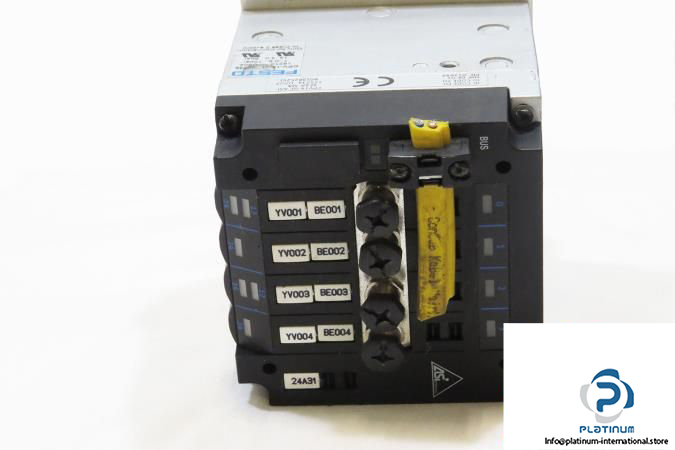

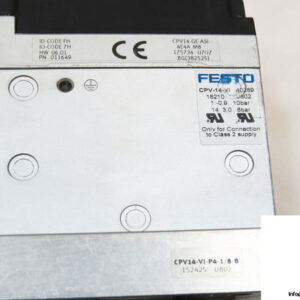

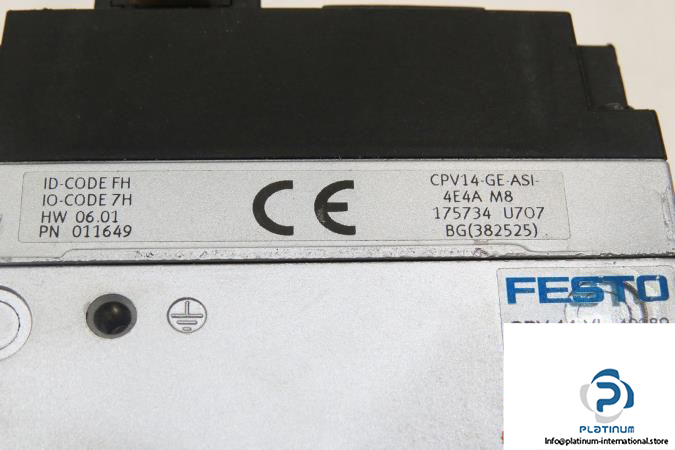

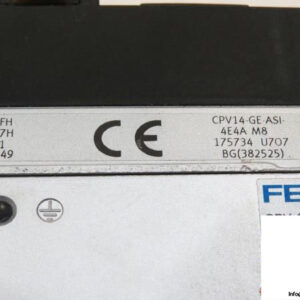

FESTO 175734 “ ELECTRICAL INTERFACE
Model: CPV14-GE-ASI-4E4A-M8
Part No.: 175734
