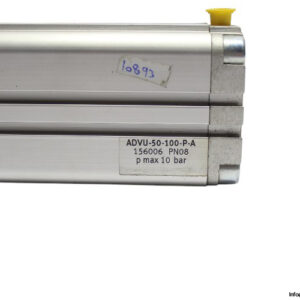

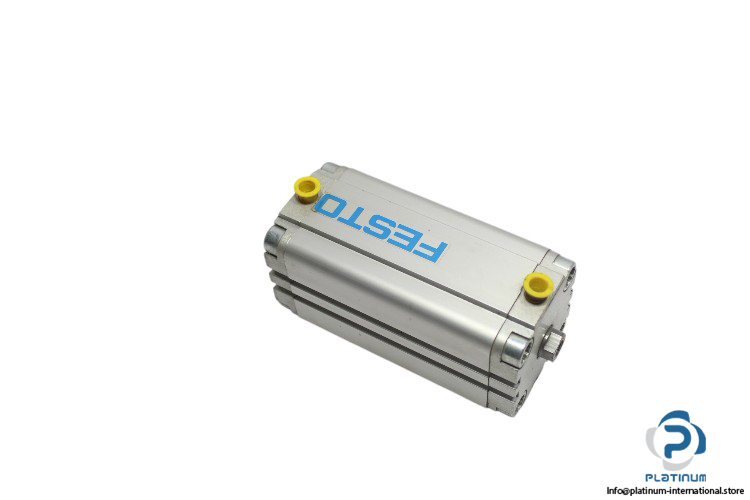

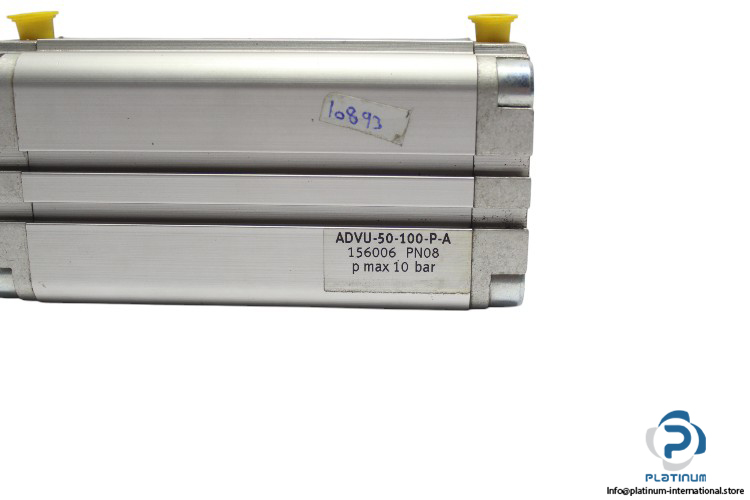

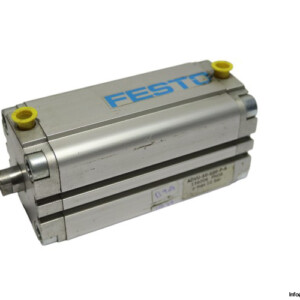

FESTO ADVU-50-100-P-A Compact Cylinder

The FESTO ADVU-50-100-P-A Compact Cylinder is a high-performance pneumatic actuator designed for space-saving applications while delivering precision and efficiency. Built with a durable wrought aluminum alloy cylinder barrel, this double-acting cylinder ensures reliable operation under high loads. Featuring elastic cushioning at both ends and compatibility with proximity sensing, it provides smooth movement and enhanced control in industrial automation.

• Manufacturer: FESTO
• Type: Compact Cylinder
• Model: ADVU-50-100-P-A
• Part No.: 156006

Technical Specifications

• Stroke Length: 100 mm
• Piston Diameter: 50 mm
• Piston Rod End: Female
• Max. Operating Pressure: 10 bar
• Mode of Operation: Double Acting
• Cushioning: Elastic Cushioning Rings/Pads at Both Ends
• Position Sensing: For Proximity Sensing
• Variant: Piston Rod at One End
• Material of Cylinder Barrel: Wrought Aluminum Alloy
• Pneumatic Connection: G1/8
• Temperature Range: -20 … 80 °C
