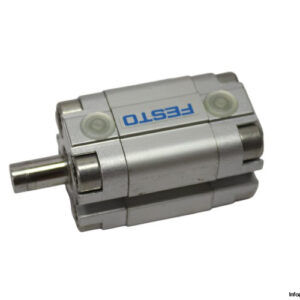

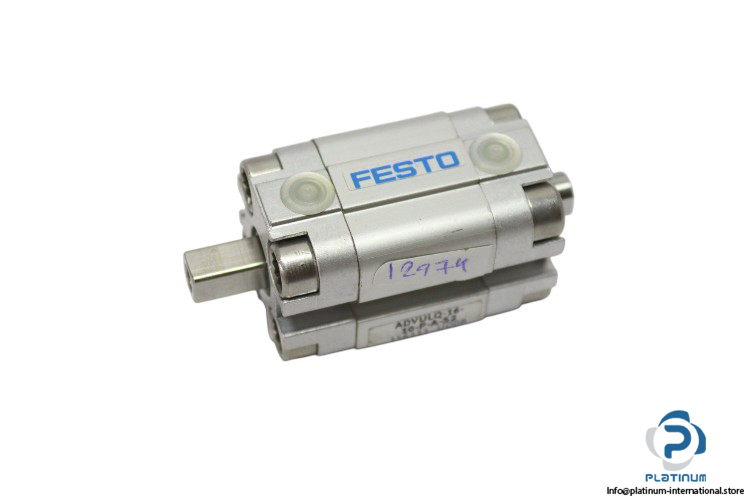

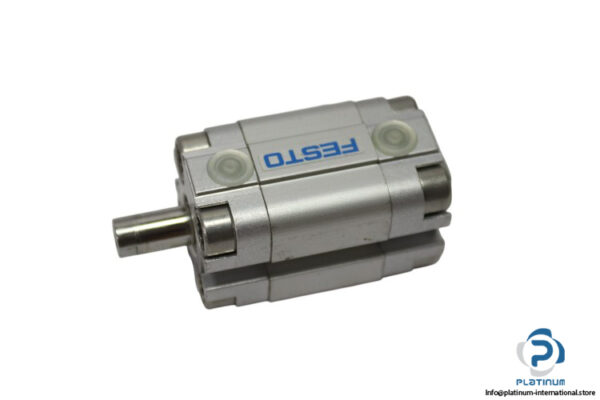

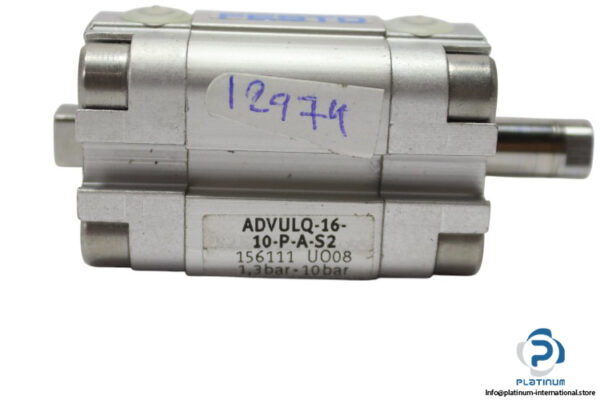

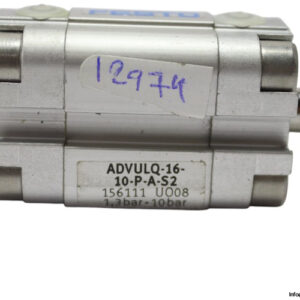

Festo ADVULQ-16-10-P-A-S2 “ Compact Air Cylinder
The Festo ADVULQ-16-10-P-A-S2 compact air cylinder is designed for versatile and efficient actuation in confined spaces. Featuring a robust construction with both square and circular rod design options, it provides reliable performance under varying operational conditions.
- Manufacturer: Festo
- Type: Compact Air Cylinder
- Model: ADVULQ-16-10-P-A-S2
- Part No: 156111 UO08
Technical Information:
- Operating Medium: Compressed air
- Design of Cylinder: Piston
- Rod Direction: Both sides
- Design of Rod: Square and circular
- Cushioning: Elastic cushioning rings/plates at both ends
- Piston Rod End: Female thread
- Mode of Operation: Double-acting
- Operating Pressure: 1.3 to 10 bar
- Piston Diameter: 16 mm
- Stroke: 10 mm
- Pneumatic Connection: 5 mm
- Cover Material: Wrought aluminum alloy
- Material of Dynamic Seals: NBR
- Piston Rod Material: High-alloy stainless steel
- Ambient Temperature Range: -20 to 80°C
