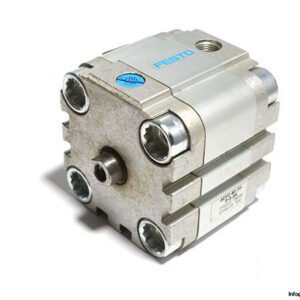

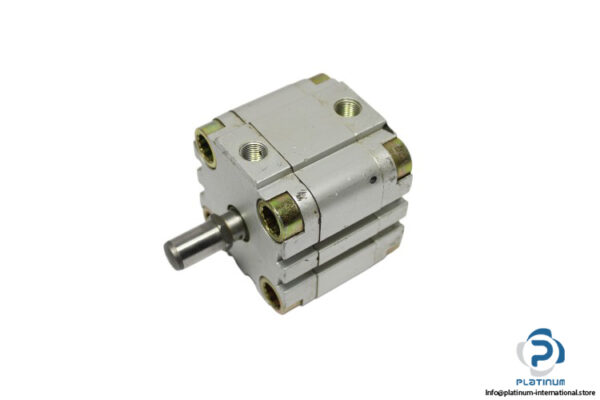

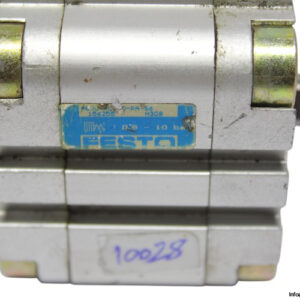

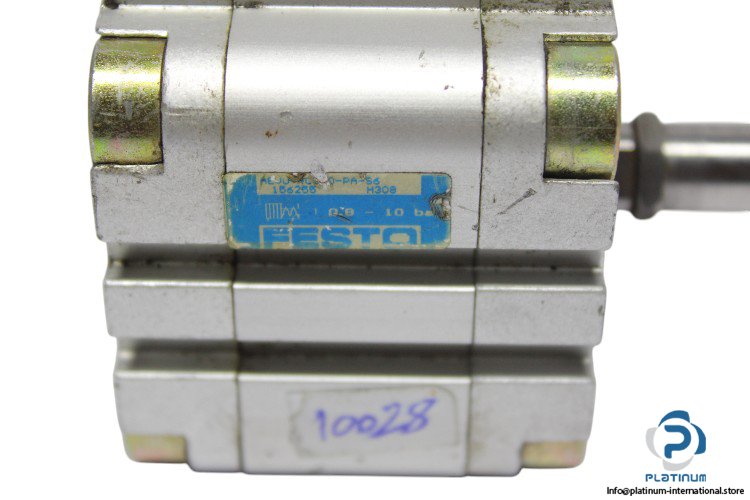

Festo AEVU-40-10-PA-S6 Compact Cylinder

The Festo AEVU-40-10-PA-S6 Compact Cylinder is a high-performance pneumatic actuator designed for space-saving applications. With a durable stainless steel piston rod and an aluminum alloy cylinder tube, this single-acting cylinder ensures reliable operation even in demanding environments.

Manufacturer: Festo

Type: COMPACT CYLINDER

Model: AEVU-40-10-PA-S6

Part No.: 156255

Technical Information:

• Stroke Length: 10 mm
• Piston Diameter: 40 mm
• Piston Rod End: Female thread
• Operating Pressure: 0.8 to 10 bar
• Mode of Operation: Single-acting
• Cushioning: Flexible cushioning rings/plates at both ends
• Position Sensing: For proximity sensing
• Variants: Heat resistant up to 120 °C
• Pneumatic Connection: G1/8

Materials:

• Piston Rod: High alloy stainless steel
• Cylinder Tube: Wrought Aluminum alloy

This compact cylinder is ideal for high-precision applications requiring a durable and space-efficient actuator with excellent pressure handling capabilities.
