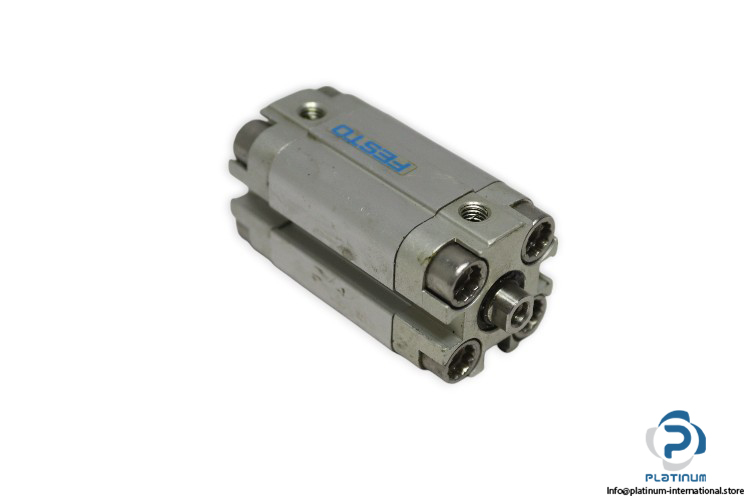

Manufacturer: FESTO
Type: Compact Cylinder

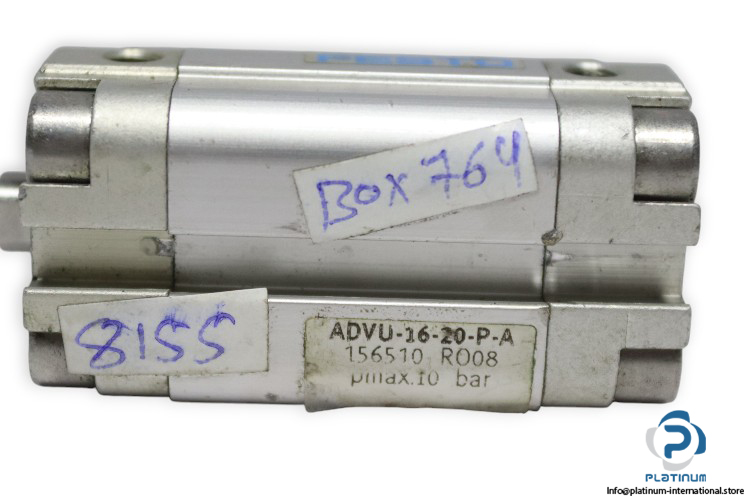

Model: ADVU-16-20-P-A
Part No.: 156510

Stroke Length: 20 mm
Piston Diameter: 16 mm
Operating medium: Compressed air
Piston rod thread: Female
Max. Operating Pressure: 10 bar
Mode of operation: Double acting
Cushioning: Elastic cushioning rings/pads at both ends
Position Sensing: For proximity sensing
Variant: Piston rod at one end
Piston rod material: High-alloy stainless steel
Material of cylinder barrel: Wrought aluminum alloy
Pneumatic Connection: 5 mm
Temperature: -20 … 80 °C
