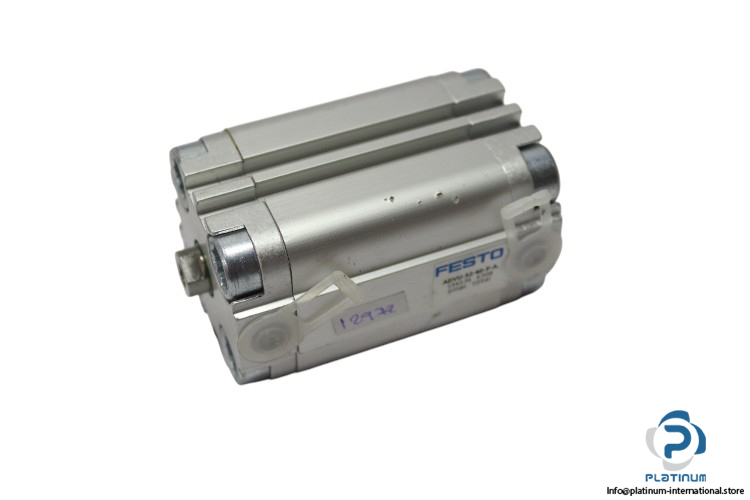

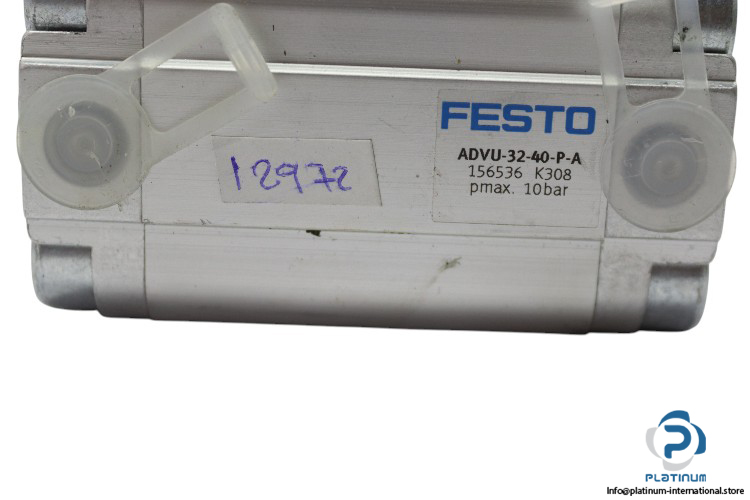

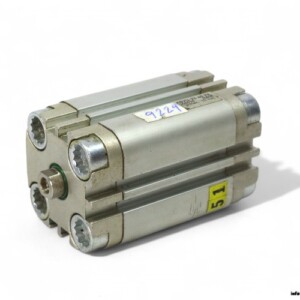

Festo ADVU-32-40-P-A “ Compact Air Cylinder
The Festo ADVU-32-40-P-A is a compact air cylinder designed for high-efficiency pneumatic operations. This double-acting piston cylinder offers elastic cushioning and high-quality materials, making it ideal for applications requiring durability and precision in controlled environments.
- Manufacturer: Festo
- Type: Compact Air Cylinder
- Model: ADVU-32-40-P-A
- Part No: 156536
Technical Information:
- Operating Medium: Compressed air
- Design: Piston
- Cushioning: Elastic cushioning rings/pads at both ends
- Piston Rod End: Female Internal thread
- Mode of Operation: Double-acting
- Pressure: 0.8 to 10 bar
- Piston Diameter: 32 mm
- Stroke: 40 mm
- Pneumatic Connection: G 1/8
- Cover Material: Wrought aluminum alloy
- Material of Dynamic Seals: NBR
- Piston Rod Material: High-alloy stainless steel
- Material of Cylinder Barrel: Wrought aluminum alloy
- Ambient Temperature Range: -20 to 80°C
