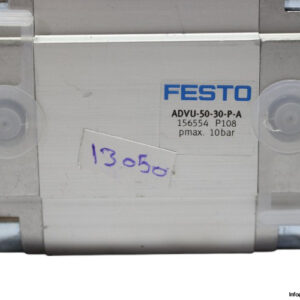

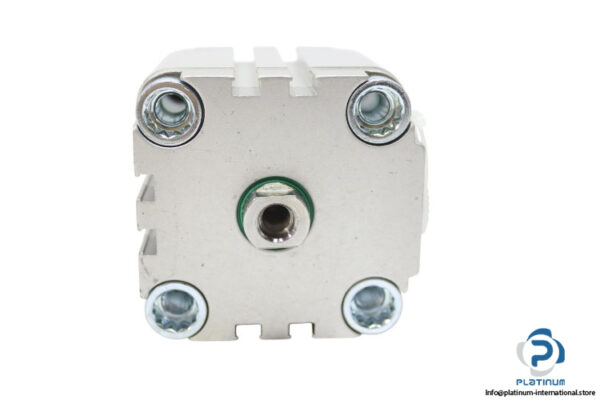

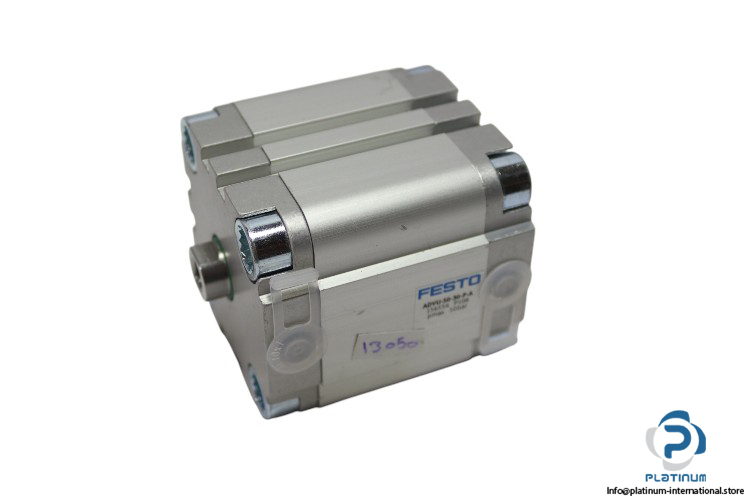

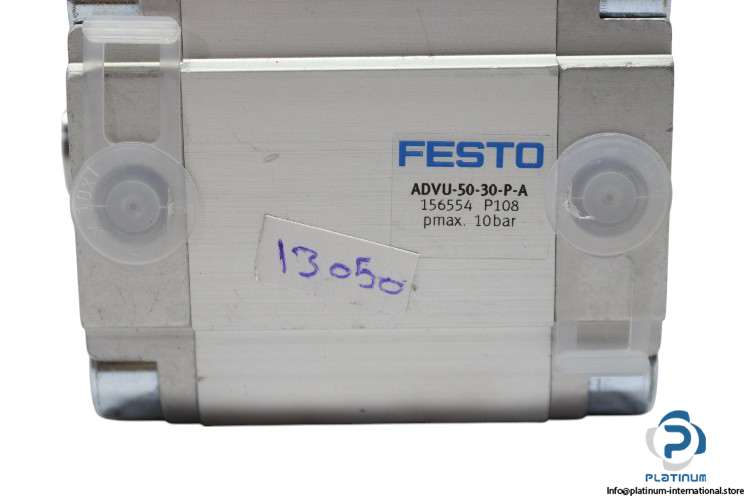

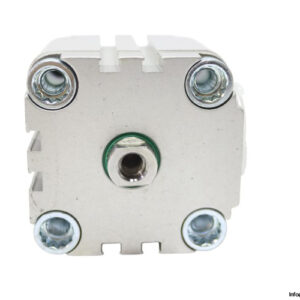

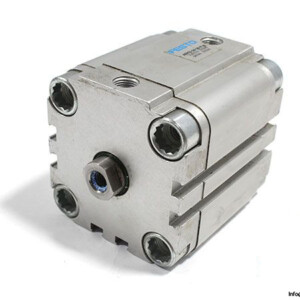

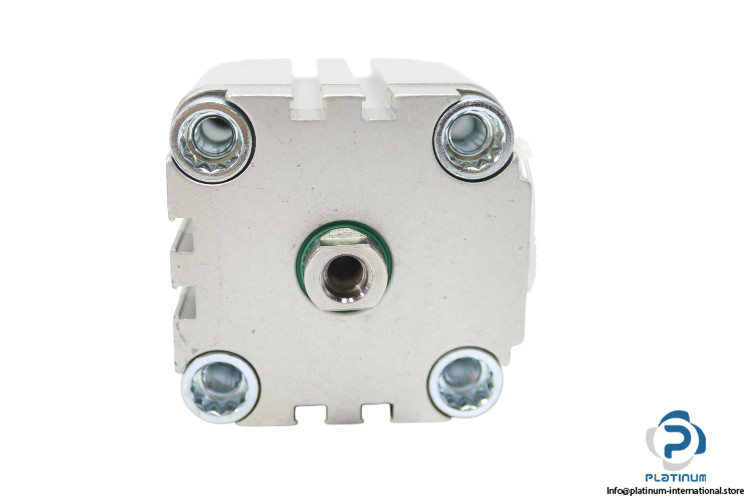

Festo ADVU-50-30-P-A Compact Cylinder
The Festo ADVU-50-30-P-A (Part No. 156554) is a high-performance compact pneumatic cylinder designed for space-saving installation in industrial automation systems. Its durable construction and elastic cushioning provide reliable, smooth operation in double-acting mode.
- Manufacturer: Festo
- Type: Compact Cylinder
- Model: ADVU-50-30-P-A
- Part No.: 156554
Technical Information:
- Stroke: 30 mm
- Piston Diameter: 50 mm
- Pneumatic Connection: G1/8
- Cushioning: Elastic cushioning rings/plates at both ends
- Mode of Operation: Double-acting
- Design: Piston, Piston rod
- Position Detection: Via proximity switch
- Variants: Piston rod at one end
- Operating Pressure: 0.08 MPa…1 MPa / 0.8 bar…10 bar / 11.6 psi…145 psi
- Operating Medium: Compressed air
- Ambient Temperature: -20 … 80 °C
